RS0204 - 4-Bit Bidirectional Voltage-Level Translator

RS0204 Description

RS0204 4-Bit Bidirectional Voltage-Level Translator with Automatic Direction Sensing 1 .
This 4-bit non-inverting translator is a bidirectional voltagelevel translator and can be used to establish digital switching compatibility between m.

RS0204 Features

* No Direction-Control
* Data Rates 100Mbps
* 1.2V to 3.6V on A ports and 1.65V to 5.5V on B Ports (VCCA≤VCCB)
* VCC Isolation Feature: If Either VCC Input is at GND, Both Ports are in the HighImpedance State
* Output Enable (OE) Input Circuit Referenced to VC

RS0204 Applications

* Handset
* Smartphone
* Tablet
* Desktop PC To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull- down resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver. Th

📥 Download Datasheet

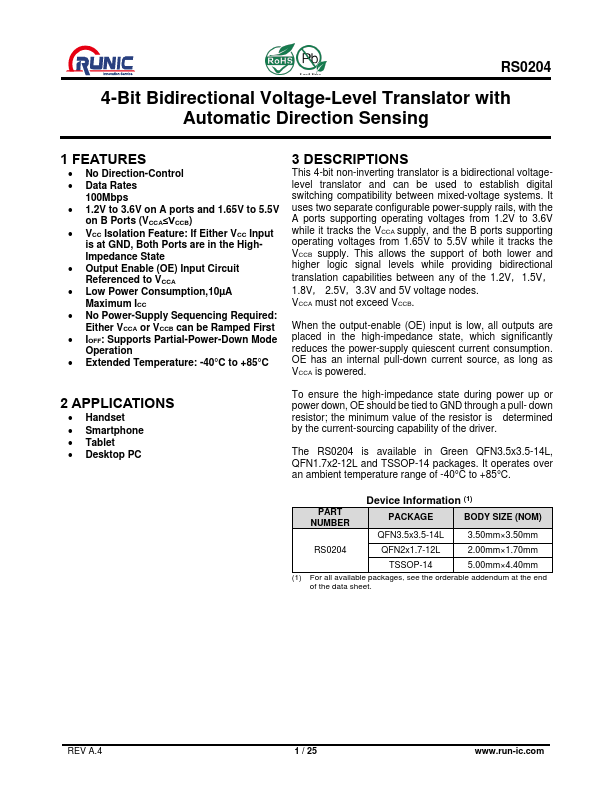

Preview of RS0204 PDF

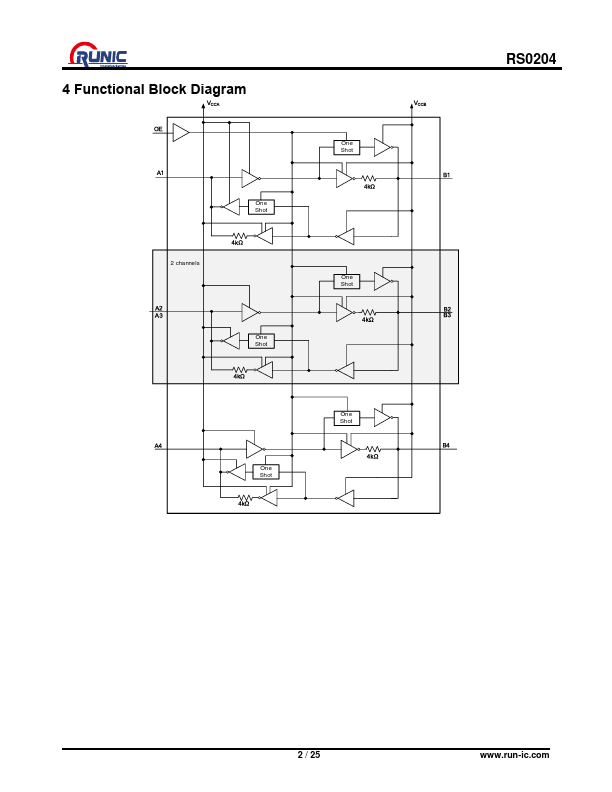

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS0204
Manufacturer
RUNIC
File Size
462.21 KB
Datasheet
RS0204-RUNIC.pdf
Description
4-Bit Bidirectional Voltage-Level Translator
