RS0208 - 8-Bit Bidirectional Voltage-Level Translator

Product Overview

RUNIC

📥 Download Datasheet

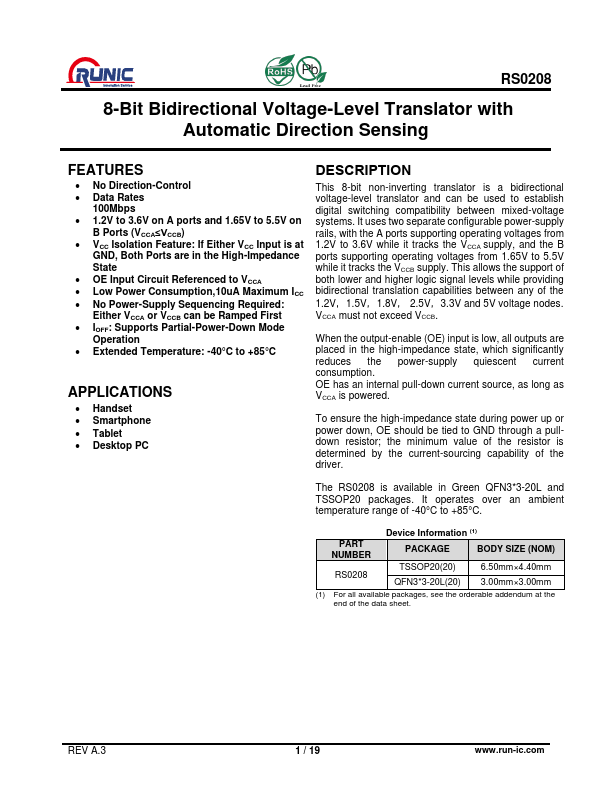

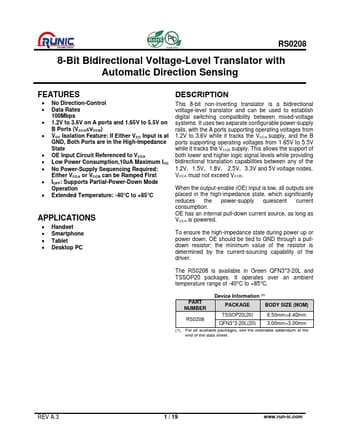

RS0208 8-Bit Bidirectional Voltage-Level Translator by RUNIC - Datasheet Preview — Datasheet preview – RS0208

Datasheet Details

Part number	RS0208
Manufacturer	RUNIC
File Size	511.50 KB
Description	8-Bit Bidirectional Voltage-Level Translator
Datasheet	RS0208 Datasheet

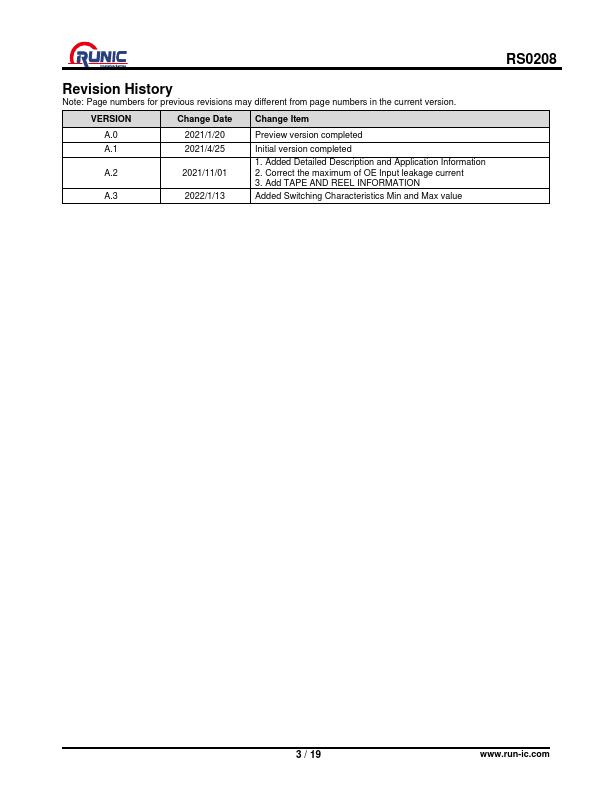

Additional preview pages of the RS0208 datasheet.

Product details

Description

This 8-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems.

Features

No Direction-Control.
Data Rates 100Mbps.
1.2V to 3.6V on A ports and 1.65V to 5.5V on B Ports (VCCA≤VCCB).
VCC Isolation Feature: If Either VCC Input is at GND, Both Ports are in the High-Impedance State.
OE Input Circuit Referenced to VCCA.
Low Power Consumption,10uA Maximum ICC.
No Power-Supply Sequencing Required: Either VCCA or VCCB can be Ramped First.
IOFF: Supports Partial-Power-Down Mode Operation.
Extende.
