RS1472 - Analog-to-Digital Converters

Description

The RS1472 is a 14-bit, 2MSPS analog-to-digital converter (ADC) that offers differential inputs.

The device operates at a 2MSPS sample rate with a standard 16 clock data frame.

Features

  • Sample Rate: 2 MSPS.
  • INL 2.5 LSB (max).
  • Wide Supply Range: Analog: 2.7 V to 5.25 V Digital: 1.65 V to AVDD.
  • 14-Bit No Missing Code Resolution.
  • Auto Power-Down at Lower Speeds.
  • Two Differential Inputs.
  • Operating Temperature Range -40 °C to 125 °C.
  • SPI-Compatible Interface.
  • Package: QFN3x3-16 2.

📥 Download Datasheet

Datasheet preview – RS1472

Datasheet Details

Part number RS1472
Manufacturer RUNIC
File Size 1.20 MB
Description Analog-to-Digital Converters
Datasheet download datasheet RS1472 Datasheet
Additional preview pages of the RS1472 datasheet.

📁 Similar Datasheet

  • RS1 - SMA fast soft-recovery controlled avalanche rectifiers (NXP)
  • RS1 - Fast-Recovery Rectifier Diodes (Sanken electric)
  • RS100 - 100W Single Output Switching Power Supply (ASTRODYNE)
  • RS100-12 - 100W Single Output Switching Power Supply (ASTRODYNE)
  • RS100-15 - 100W Single Output Switching Power Supply (ASTRODYNE)
  • RS100-24 - 100W Single Output Switching Power Supply (ASTRODYNE)
  • RS100-3.3 - 100W Single Output Switching Power Supply (ASTRODYNE)
  • RS100-48 - 100W Single Output Switching Power Supply (ASTRODYNE)
  • RS100-5 - 100W Single Output Switching Power Supply (ASTRODYNE)
  • RS1000FL - 1.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE (WON-TOP)
Other Datasheets by RUNIC
  • RS1473 - Analog-to-Digital Converters
  • RS164 - Parallel-out Shift Register
  • RS16T245A - 16-Bit Dual-Supply Bus Transceiver
  • RS1905 - 500kbps RS-485 Transceivers
  • RS1G00 - Single 2-Input Positive-NAND Gate
  • RS1G04 - Single Inverter Gate
  • RS1G06 - Single Inverter Buffer/Driver
  • RS1G07 - Single Buffer/Driver

Full PDF Text Transcription

Click to expand full text

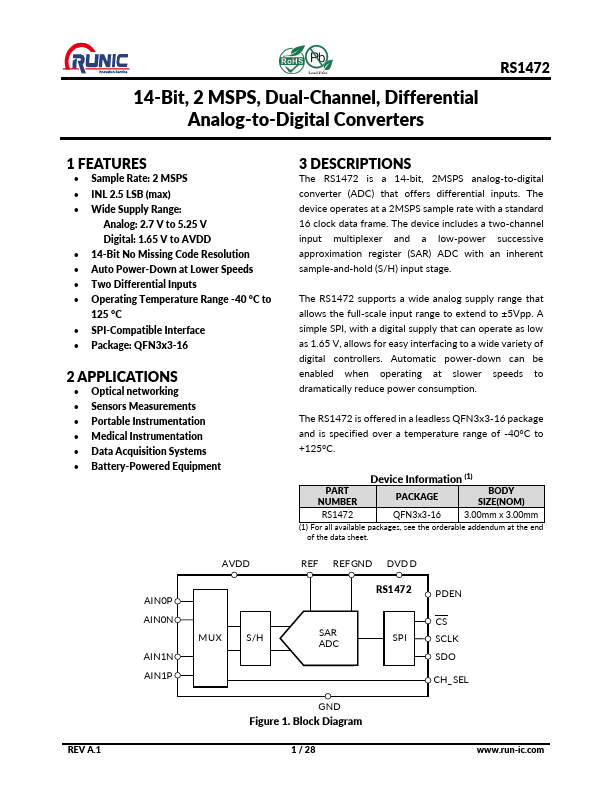

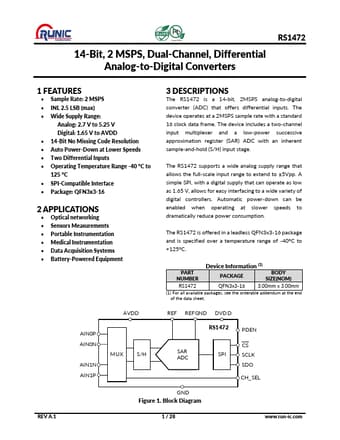

14-Bit, 2 MSPS, Dual-Channel, Differential Analog-to-Digital Converters RS1472 1 FEATURES • Sample Rate: 2 MSPS • INL 2.5 LSB (max) • Wide Supply Range: Analog: 2.7 V to 5.25 V Digital: 1.65 V to AVDD • 14-Bit No Missing Code Resolution • Auto Power-Down at Lower Speeds • Two Differential Inputs • Operating Temperature Range -40 °C to 125 °C • SPI-Compatible Interface • Package: QFN3x3-16 2 APPLICATIONS • Optical networking • Sensors Measurements • Portable Instrumentation • Medical Instrumentation • Data Acquisition Systems • Battery-Powered Equipment 3 DESCRIPTIONS The RS1472 is a 14-bit, 2MSPS analog-to-digital converter (ADC) that offers differential inputs. The device operates at a 2MSPS sample rate with a standard 16 clock data frame.
