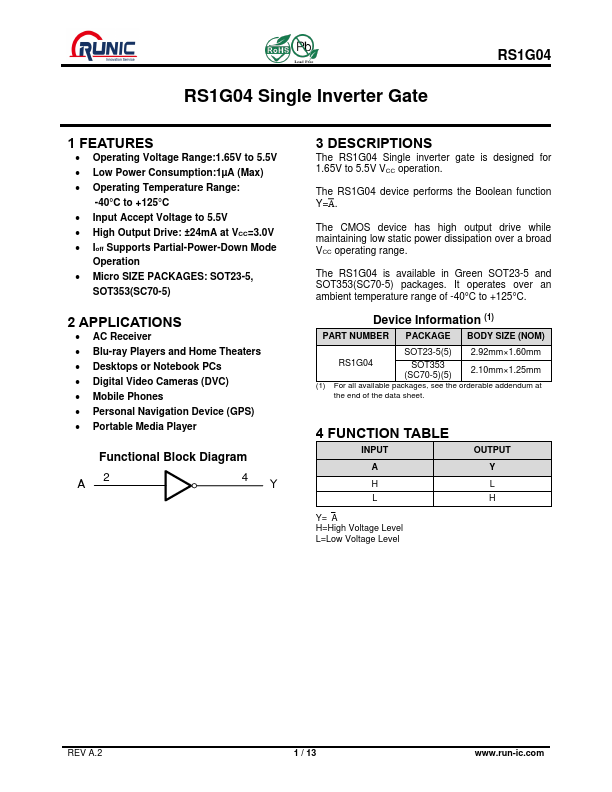

RS1G04
FEATURES
- Operating Voltage Range:1.65V to 5.5V
- Low Power Consumption:1µA (Max)
- Operating Temperature Range:
-40°C to +125°C
- Input Accept Voltage to 5.5V
- High Output Drive: ±24m A at VCC=3.0V
- Ioff Supports Partial-Power-Down Mode
Operation
- Micro SIZE PACKAGES: SOT23-5,
SOT353(SC70-5)
2 APPLICATIONS
- AC Receiver
- Blu-ray Players and Home Theaters
- Desktops or Notebook PCs
- Digital Video Cameras (DVC)
- Mobile Phones
- Personal Navigation Device (GPS)
- Portable Media Player
Functional Block Diagram
A2
4Y
3 DESCRIPTIONS
The RS1G04 Single inverter gate is designed for 1.65V to 5.5V VCC operation.
The RS1G04 device performs the Boolean function Y=A̅.
The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.
The RS1G04 is available in Green SOT23-5 and SOT353(SC70-5) packages. It operates over an ambient temperature range of -40°C to +125°C.
Device Information (1)
PART NUMBER PACKAGE BODY SIZE...
