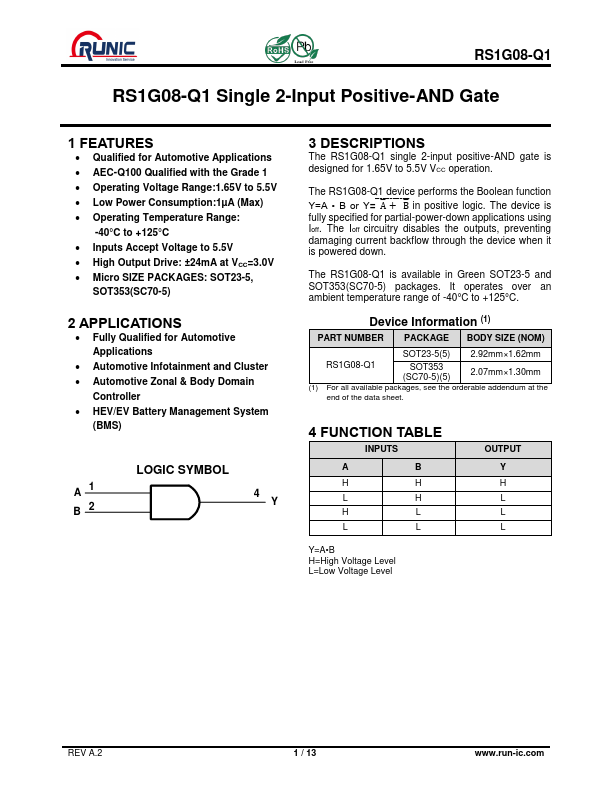

RS1G08-Q1
FEATURES
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1
- Operating Voltage Range:1.65V to 5.5V
- Low Power Consumption:1µA (Max)
- Operating Temperature Range:
-40°C to +125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24m A at VCC=3.0V
- Micro SIZE PACKAGES: SOT23-5,
SOT353(SC70-5)
2 APPLICATIONS
- Fully Qualified for Automotive Applications
- Automotive Infotainment and Cluster
- Automotive Zonal & Body Domain
Controller
- HEV/EV Battery Management System
(BMS)
LOGIC SYMBOL
A1 B2
4 Y
3 DESCRIPTIONS
The RS1G08-Q1 single 2-input positive-AND gate is designed for 1.65V to 5.5V VCC operation.
The RS1G08-Q1 device performs the Boolean function Y=A
- B or Y=̅̅A̅̅̅+̅̅̅̅B̅ in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
The RS1G08-Q1 is available in Green SOT23-5 and...
