RS1G11 Datasheet (RUNIC) - Single 3-Input Positive-AND Gate

RS1G11, Single 3-Input Positive-AND Gate

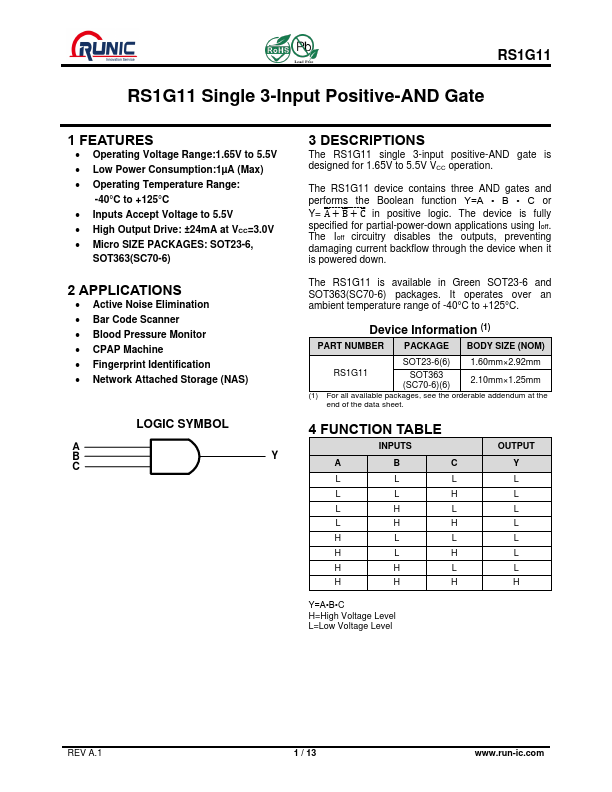

The RS1G11 single 3-input positive-AND gate is designed for 1.65V to 5.5V VCC operation.

The RS1G11 device contains three AND gates and performs the Boolean function Y=A * B * C or Y= A̅̅̅̅+̅̅̅B̅̅̅̅+̅̅̅C̅ in positive logic.

The device is fully specified for partial-power-down appli

RS1G11 Features

* Operating Voltage Range:1.65V to 5.5V

* Low Power Consumption:1µA (Max)

* Operating Temperature Range: -40°C to +125°C

* Inputs Accept Voltage to 5.5V

* High Output Drive: ±24mA at VCC=3.0V

* Micro SIZE PACKAGES: SOT23-6, SOT363(SC70-6) 2 APPLICATION
