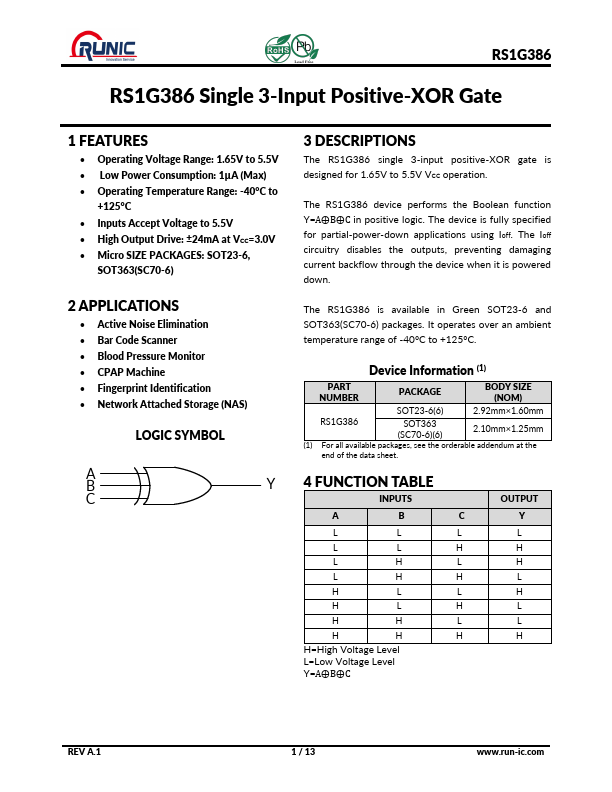

Preview of RS1G386 PDF

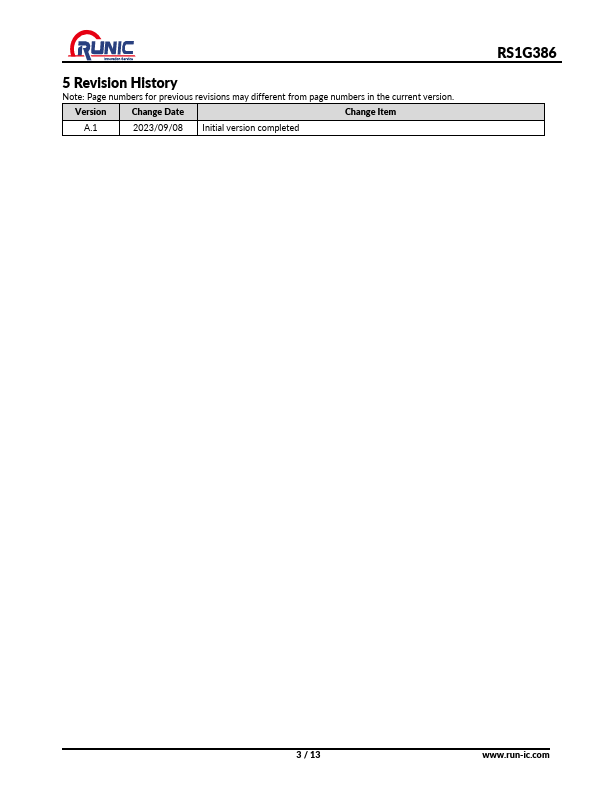

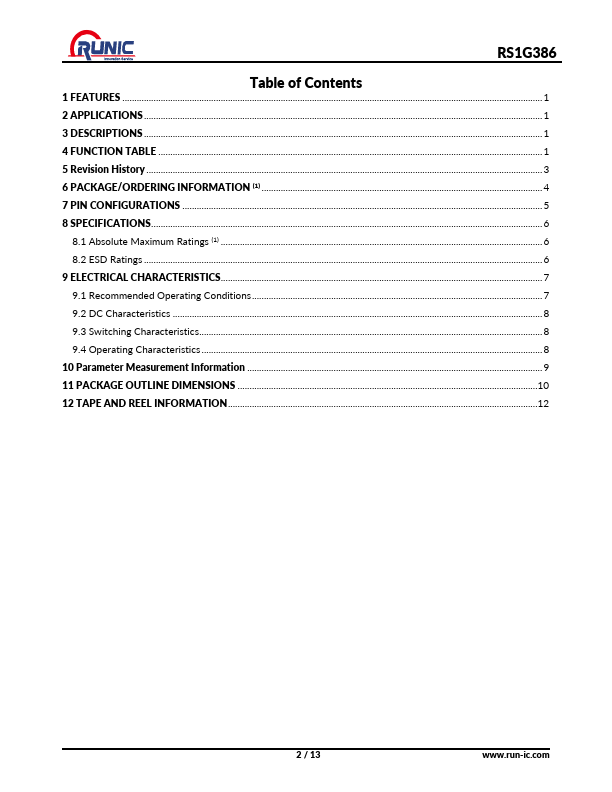

RS1G386 Datasheet Preview Page 2 RS1G386 Datasheet Preview Page 3

Datasheet Details

Part number:

RS1G386

Manufacturer:

RUNIC

File Size:

592.62 KB

Description:

Single 3-input positive-xor gate.

RS1G386, Single 3-Input Positive-XOR Gate

The RS1G386 single 3-input positive-XOR gate is designed for 1.65V to 5.5V VCC operation.

The RS1G386 device performs the Boolean function Y=A⨁B⨁C in positive logic.

The device is fully specified for partial-power-down applications using Ioff.

The Ioff circuitry disables the outputs, preventing da

RS1G386 Features

* Operating Voltage Range: 1.65V to 5.5V

* Low Power Consumption: 1µ A (Max)

* Operating Temperature Range: -40°C to +125°C

* Inputs Accept Voltage to 5.5V

* High Output Drive: ±24mA at VCC=3.0V

* Micro SIZE PACKAGES: SOT23-6, SOT363(SC70-6) 2 APPLICAT
