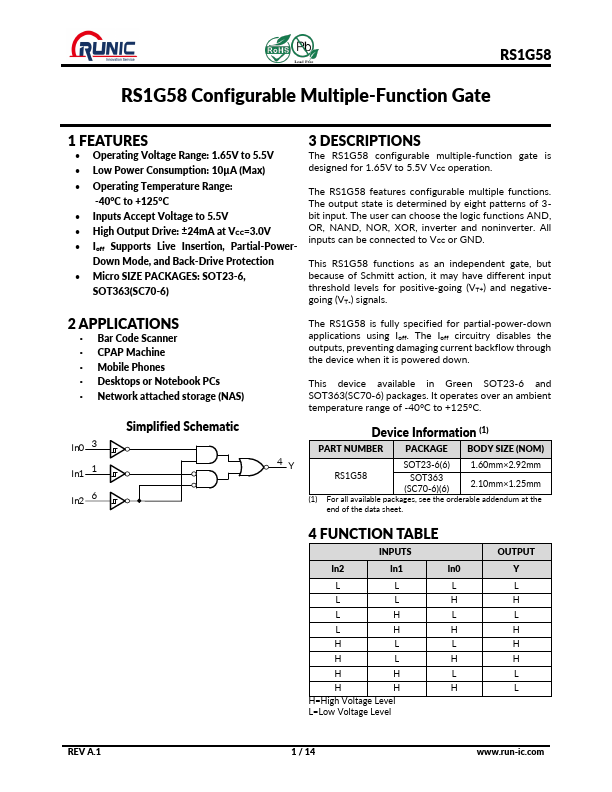

RS1G58
FEATURES
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 10µ A (Max)
- Operating Temperature Range:
-40°C to +125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24m A at VCC=3.0V
- Ioff Supports Live Insertion, Partial-Power-
Down Mode, and Back-Drive Protection
- Micro SIZE PACKAGES: SOT23-6,
SOT363(SC70-6)
3 DESCRIPTIONS
The RS1G58 configurable multiple-function gate is designed for 1.65V to 5.5V VCC operation.
The RS1G58 features configurable multiple functions. The output state is determined by eight patterns of 3bit input. The user can choose the logic functions AND, OR, NAND, NOR, XOR, inverter and noninverter. All inputs can be connected to VCC or GND.
This RS1G58 functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negativegoing (VT-) signals.
2 APPLICATIONS
- Bar Code Scanner
- CPAP Machine
- Mobile Phones
- Desktops or Notebook PCs
- Network attached storage...
