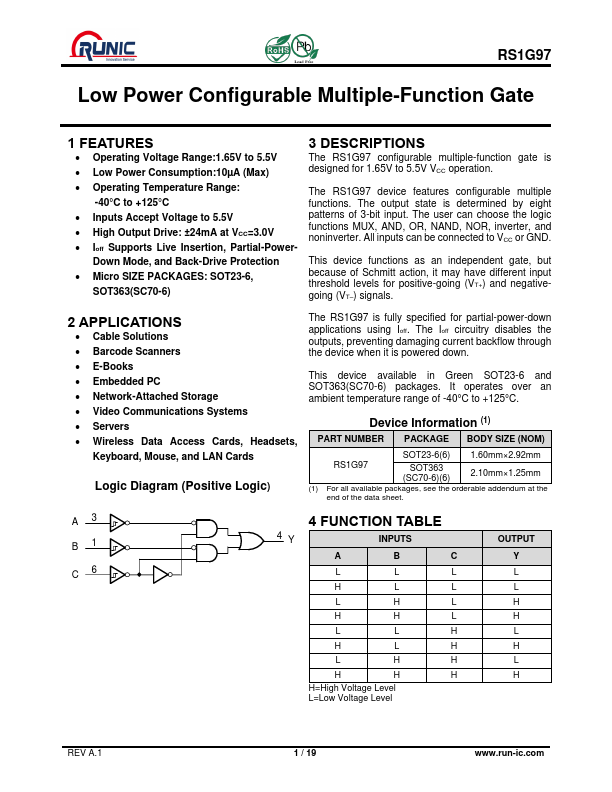

RS1G97
FEATURES
- Operating Voltage Range:1.65V to 5.5V
- Low Power Consumption:10µA (Max)
- Operating Temperature Range:
-40°C to +125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24m A at VCC=3.0V
- Ioff Supports Live Insertion, Partial-Power-
Down Mode, and Back-Drive Protection
- Micro SIZE PACKAGES: SOT23-6,
SOT363(SC70-6)
3 DESCRIPTIONS
The RS1G97 configurable multiple-function gate is designed for 1.65V to 5.5V VCC operation.
The RS1G97 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter. All inputs can be connected to VCC or GND.
This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negativegoing (VT- ) signals.
2 APPLICATIONS
- Cable Solutions
- Barcode Scanners
- E-Books
- Embedded PC
- Network-Attached Storage
- Video...
