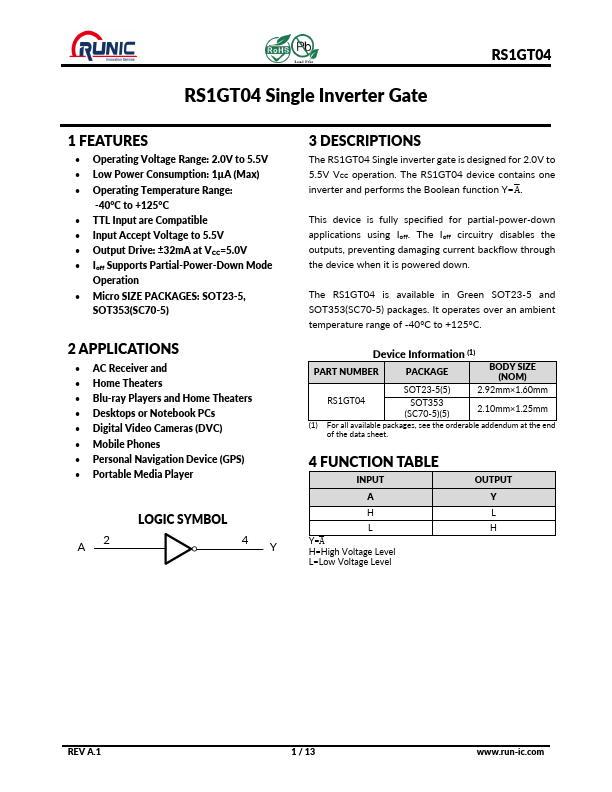

RS1GT04
FEATURES
- Operating Voltage Range: 2.0V to 5.5V
- Low Power Consumption: 1µ A (Max)
- Operating Temperature Range:
-40°C to +125°C
- TTL Input are patible
- Input Accept Voltage to 5.5V
- Output Drive: ±32m A at VCC=5.0V
- Ioff Supports Partial-Power-Down Mode
Operation
- Micro SIZE PACKAGES: SOT23-5,
SOT353(SC70-5)
2 APPLICATIONS
- AC Receiver and
- Home Theaters
- Blu-ray Players and Home Theaters
- Desktops or Notebook PCs
- Digital Video Cameras (DVC)
- Mobile Phones
- Personal Navigation Device (GPS)
- Portable Media Player
A2
LOGIC SYMBOL 4Y
3 DESCRIPTIONS
The RS1GT04 Single inverter gate is designed for 2.0V to 5.5V VCC operation. The RS1GT04 device contains one inverter and performs the Boolean function Y=A̅.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
The RS1GT04 is available in Green SOT23-5 and SOT353(SC70-5)...
