RS1GT08 Datasheet - RUNIC

RS1GT08-RUNIC.pdf

Preview of RS1GT08 PDF
RS1GT08 Datasheet Preview Page 2 RS1GT08 Datasheet Preview Page 3

Datasheet Details

Part number:

RS1GT08

Manufacturer:

RUNIC

File Size:

514.94 KB

Description:

Single 2-input positive-and gate.

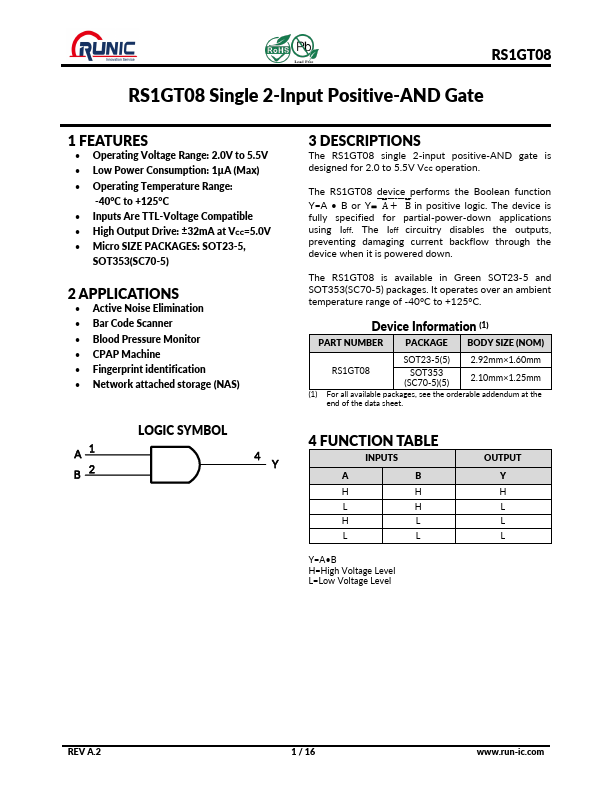

RS1GT08, Single 2-Input Positive-AND Gate

The RS1GT08 single 2-input positive-AND gate is designed for 2.0 to 5.5V VCC operation.

The RS1GT08 device performs the Boolean function Y=A * B or Y=̅̅A̅̅̅+̅̅̅̅B̅ in positive logic.

The device is fully specified for partial-power-down applications using Ioff.

The Ioff circuitry disables

RS1GT08 Features

* Operating Voltage Range: 2.0V to 5.5V

* Low Power Consumption: 1µ A (Max)

* Operating Temperature Range: -40°C to +125°C

* Inputs Are TTL-Voltage Compatible

* High Output Drive: ±32mA at VCC=5.0V

* Micro SIZE PACKAGES: SOT23-5, SOT353(SC70-5) 2 APPLI
