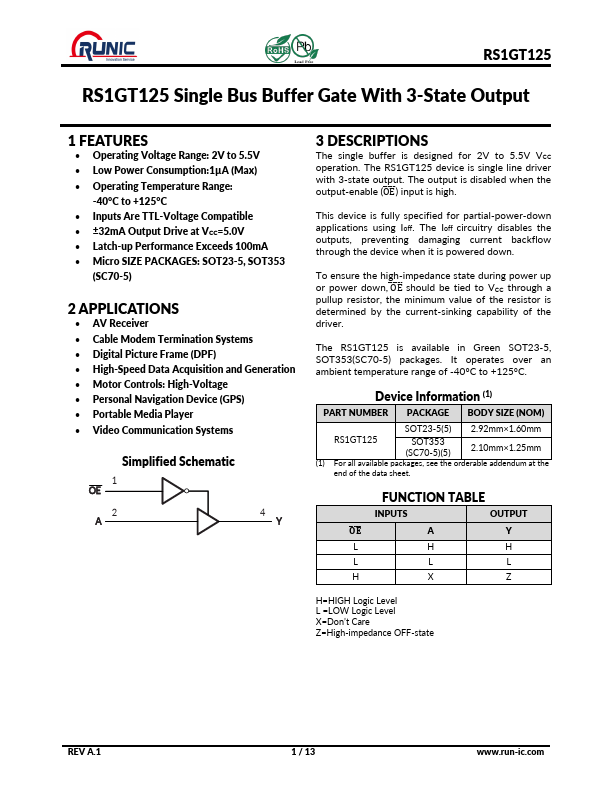

RS1GT125
FEATURES
- Operating Voltage Range: 2V to 5.5V
- Low Power Consumption:1µ A (Max)
- Operating Temperature Range:
-40°C to +125°C
- Inputs Are TTL-Voltage patible
- ±32m A Output Drive at VCC=5.0V
- Latch-up Performance Exceeds 100m A
- Micro SIZE PACKAGES: SOT23-5, SOT353
(SC70-5)
2 APPLICATIONS
- AV Receiver
- Cable Modem Termination Systems
- Digital Picture Frame (DPF)
- High-Speed Data Acquisition and Generation
- Motor Controls: High-Voltage
- Personal Navigation Device (GPS)
- Portable Media Player
- Video munication Systems
Simplified Schematic
1 OE
2 A
4 Y
3 DESCRIPTIONS
The single buffer is designed for 2V to 5.5V VCC operation. The RS1GT125 device is single line driver with 3-state output. The output is disabled when the output-enable (O̅̅̅E̅) input is high.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
To ensure the...
