RS1GT126 Single Bus Buffer Gate

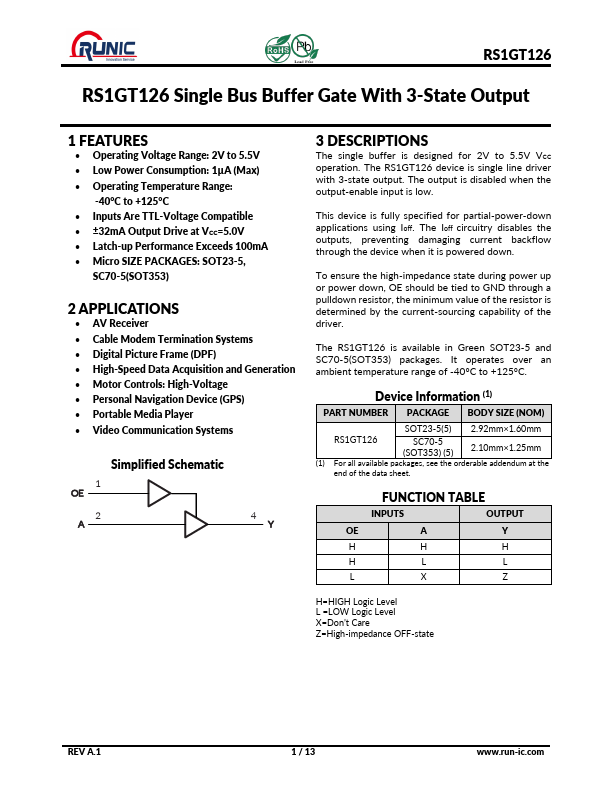

📥 Download Datasheet  Datasheet Preview Page 1

Description

RS1GT126 RS1GT126 Single Bus Buffer Gate With 3-State Output 1 .
The single buffer is designed for 2V to 5.

📥 Download Datasheet

Preview of RS1GT126 PDF

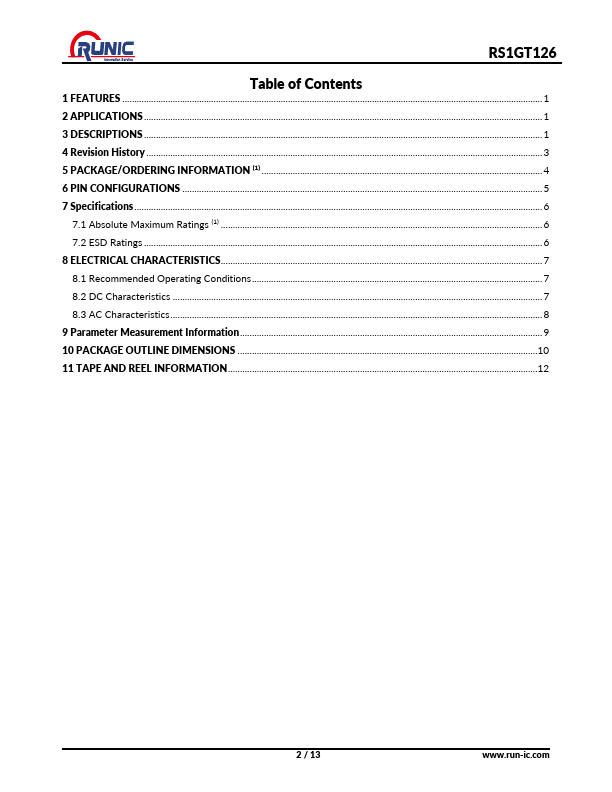

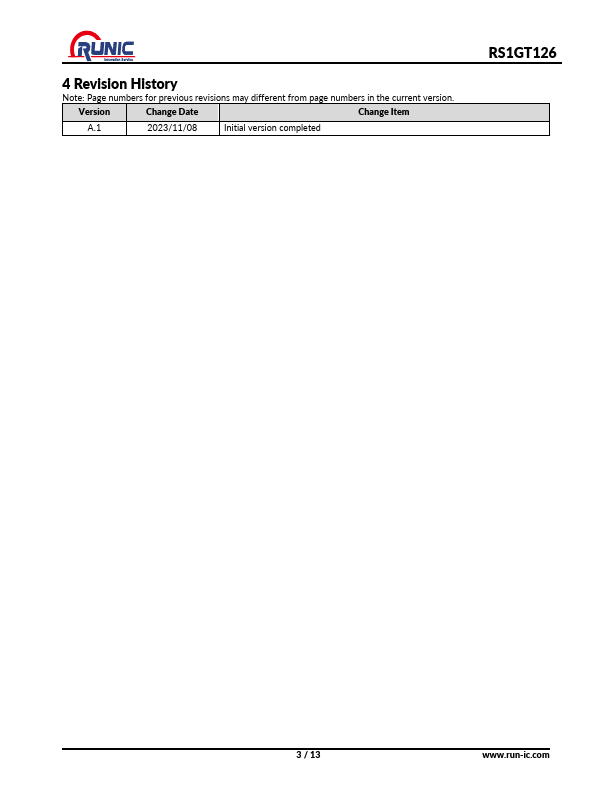

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS1GT126
Manufacturer
RUNIC
File Size
484.35 KB
Datasheet
RS1GT126-RUNIC.pdf
Description
Single Bus Buffer Gate

Features

* Operating Voltage Range: 2V to 5.5V
* Low Power Consumption: 1µ A (Max)
* Operating Temperature Range: -40°C to +125°C
* Inputs Are TTL-Voltage Compatible
* ±32mA Output Drive at VCC=5.0V
* Latch-up Performance Exceeds 100mA
* Micro SIZE PACK

Applications

* AV Receiver
* Cable Modem Termination Systems
* Digital Picture Frame (DPF)
* High-Speed Data Acquisition and Generation
* Motor Controls: High-Voltage
* Personal Navigation Device (GPS)
* Portable Media Player
* Video Communication S
