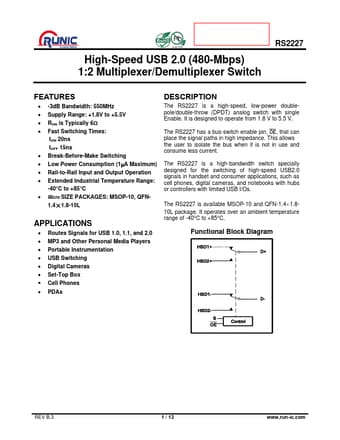

RS2227
FEATURES
- -3d B Bandwidth: 550MHz
- Supply Range: +1.8V to +5.5V
- RON is Typically 6Ω
- Fast Switching Times: t ON 20ns t OFF 15ns
- Break-Before-Make Switching
- Low Power Consumption (1μA Maximum)
- Rail-to-Rail Input and Output Operation
- Extended Industrial Temperature Range: -40°C to +85°C
- Micro SIZE PACKAGES: MSOP-10, QFN1.4×1.8-10L
APPLICATIONS
- Routes Signals for USB 1.0, 1.1, and 2.0
- MP3 and Other Personal Media Players
- Portable Instrumentation
- USB Switching
- Digital Cameras
- Set-Top Box
- Cell Phones
- PDAs
DESCRIPTION
The RS2227 is a high-speed, low-power doublepole/double-throw (DPDT) analog switch with single Enable. It is designed to operate from 1.8 V to 5.5 V.
The RS2227 has a bus-switch enable pin, O̅̅̅E̅, that can place the signal paths in high impedance. This allows the user to isolate the bus when it is not in use and consume less current.
The RS2227 is a high-bandwidth switch specially designed for the switching of high-speed USB2.0 signals in handset...
