RS240T
FEATURES
- Power-Supply Range: 4.5V to 5.5V
- 3-State Outputs Drive Bus Lines
- Low Power Consumption: 40μA ICC(Max)
- TTL Input are patible
- ±24m A Output Drive at 5V
- Low Input Current of 2μA Max
- Extended Temperature: -40°C to 125°C
- Micro SIZE PACKAGES: TSSOP20, SOP20
2 APPLICATIONS
- Servers
- Smart Grids
- Network Switches
- Infotainment
- Surveillance Cameras
3 DESCRIPTIONS

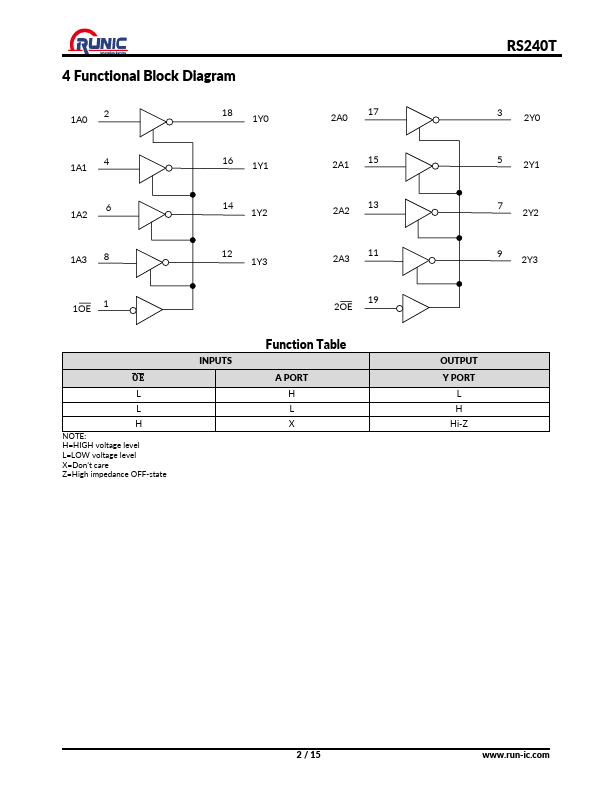

The RS240T devices are organized as two 4-bit buffers/drivers with separate output-enable ( O̅̅̅E̅ ) inputs. When O̅̅̅E̅ is low, the device passes inverted data from the A inputs to the Y outputs. When O̅̅̅E̅ is high, the outputs are in the high-impedance state. VCC supporting operating voltage from 4.5V to 5.5V.
To ensure the high-impedance state during power up or power down, O̅̅̅E̅ should be tied to VCC through a pullup resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver.
Device Information (1)
PART NUMBER
PACKAGE
BODY SIZE...
