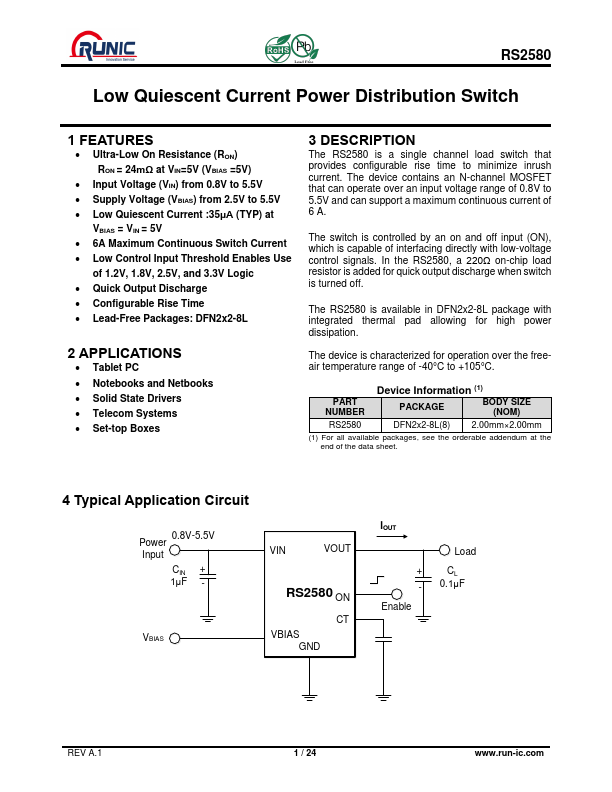

RS2580
FEATURES
- Ultra-Low On Resistance (RON) RON = 24mΩ at VIN=5V (VBIAS =5V)
- Input Voltage (VIN) from 0.8V to 5.5V
- Supply Voltage (VBIAS) from 2.5V to 5.5V
- Low Quiescent Current :35μA (TYP) at
VBIAS = VIN = 5V
- 6A Maximum Continuous Switch Current
- Low Control Input Threshold Enables Use of 1.2V, 1.8V, 2.5V, and 3.3V Logic
- Quick Output Discharge
- Configurable Rise Time
- Lead-Free Packages: DFN2x2-8L
2 APPLICATIONS
- Tablet PC
- Notebooks and Netbooks
- Solid State Drivers
- Tele Systems
- Set-top Boxes
3 DESCRIPTION
The RS2580 is a single channel load switch that provides configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8V to 5.5V and can support a maximum continuous current of 6 A.
The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. In the RS2580, a 220Ω on-chip load resistor is added for quick output...
