RS2G00 - Dual 2-Input Positive-NAND Gate

RUNIC

📥 Download Datasheet

RS2G00 Datasheet Preview — Preview of RS2G00 PDF

datasheet Preview Page 2

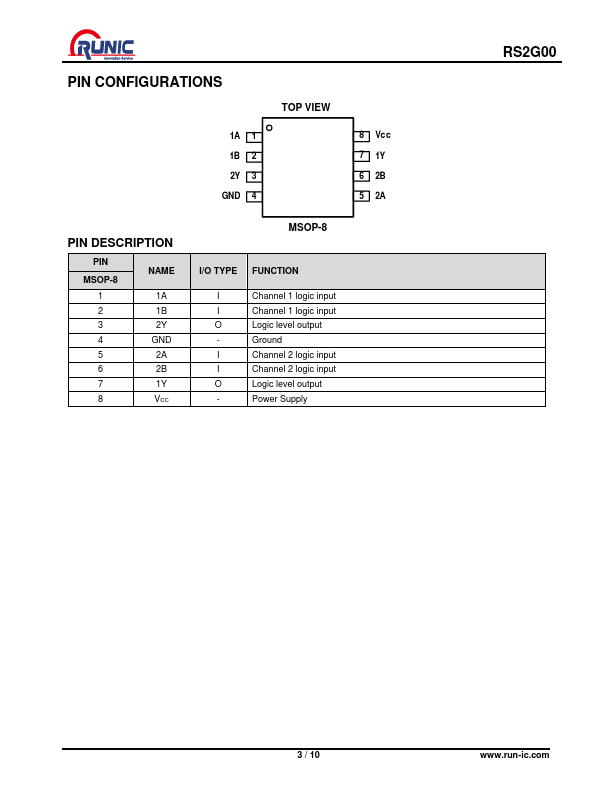

datasheet Preview Page 3

Datasheet Details

Part number	RS2G00
Manufacturer	RUNIC
File Size	324.51 KB
Description	Dual 2-Input Positive-NAND Gate
Datasheet	RS2G00-RUNIC.pdf

RS2G00 Product details

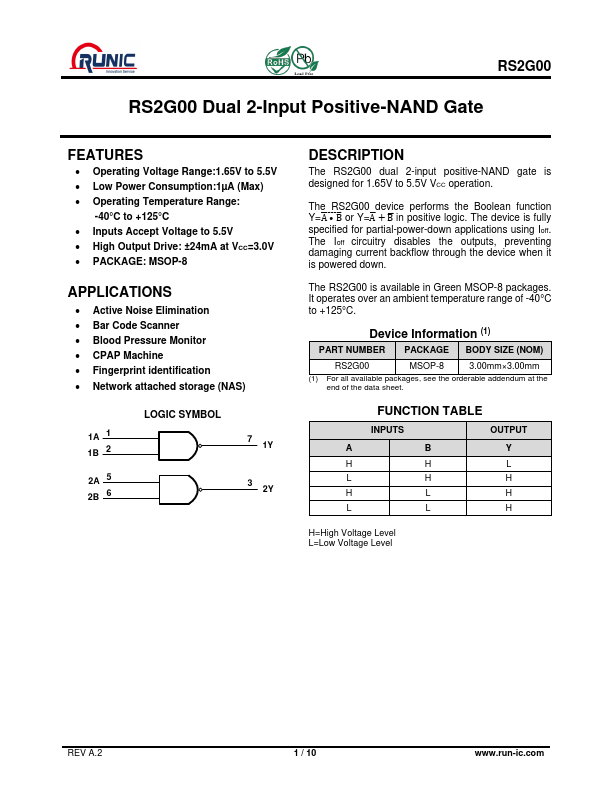

Description

The RS2G00 dual 2-input positive-NAND gate is designed for 1.65V to 5.5V VCC operation. ̅̅̅B̅ or Y=A̅ + B̅ in positive logic.

Features

Operating Voltage Range:1.65V to 5.5V.
Low Power Consumption:1µA (Max).
Operating Temperature Range: -40°C to +125°C.
Inputs Accept Voltage to 5.5V.
High Output Drive: ±24mA at VCC=3.0V.
