RS2G04 - Dual Inverter Gate

RS2G04 Description

RS2G04 Dual Inverter Gate RS2G04 1 .
The RS2G04 Dual inverter gate is designed for 1.

RS2G04 Features

* Operating Voltage Range:1.65V to 5.5V
* Low Power Consumption:1µA (Max)
* Operating Temperature Range: -40°C to +125°C
* Input Accept Voltage to 5.5V
* High Output Drive: ±24mA at VCC=3.0V
* Ioff Supports Partial-Power-Down Mode Operation
* M

RS2G04 Applications

* AC Receiver
* Blu-ray Players and Home Theaters
* Desktops or Notebook PCs
* Digital Video Cameras (DVC)
* Mobile Phones
* Personal Navigation Device (GPS)
* Portable Media Player Functional Block Diagram 1A 1 6 1Y 2A 3 4 2Y 3 DESCRIPTI

📥 Download Datasheet

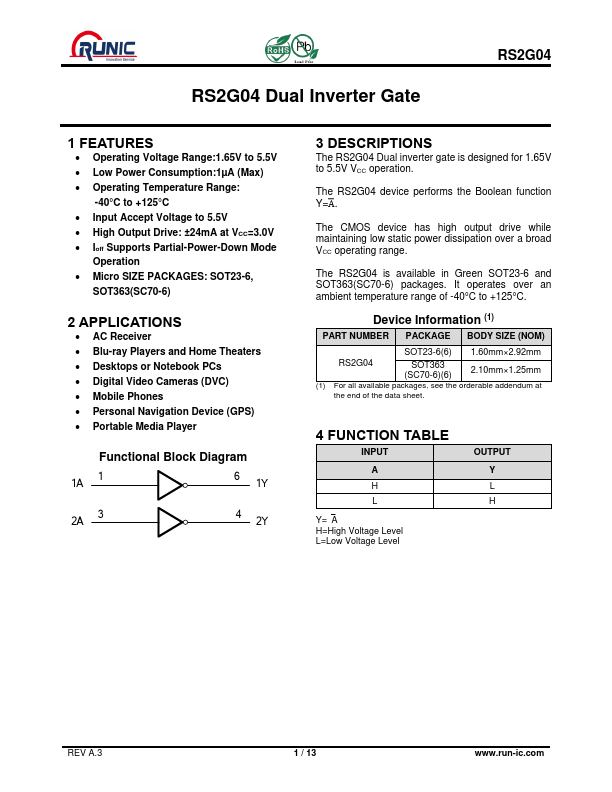

Preview of RS2G04 PDF

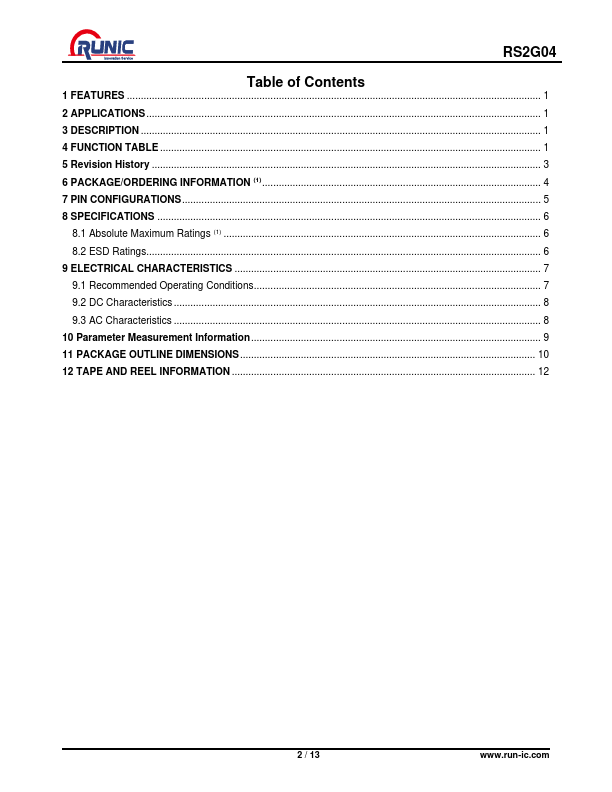

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS2G04
Manufacturer
RUNIC
File Size
347.91 KB
Datasheet
RS2G04-RUNIC.pdf
Description
Dual Inverter Gate
