Datasheet Details
Part number:
RS2G07
Manufacturer:
RUNIC
File Size:
354.48 KB
Description:
Dual buffer and driver.
Datasheet Details
Part number:
RS2G07
Manufacturer:
RUNIC
File Size:
354.48 KB
Description:
Dual buffer and driver.

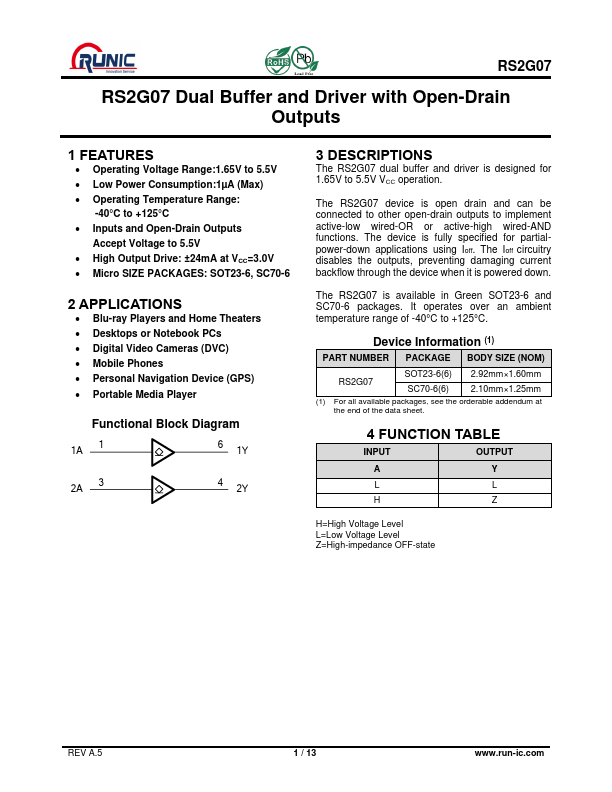

The RS2G07 dual buffer and driver is designed for 1.65V to 5.5V VCC operation.
The RS2G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
The device is fully specified for partialpower-down applications using
RS2G07 Features
* Operating Voltage Range:1.65V to 5.5V
* Low Power Consumption:1µA (Max)
* Operating Temperature Range: -40°C to +125°C
* Inputs and Open-Drain Outputs Accept Voltage to 5.5V
* High Output Drive: ±24mA at VCC=3.0V
* Micro SIZE PACKAGES: SOT23-6, SC70-
