RS2G08 Dual 2-Input Positive-AND Gate

📥 Download Datasheet  Datasheet Preview Page 1

Description

RS2G08 RS2G08 Dual 2-Input Positive-AND Gate .
The RS2G08 dual 2-input positive-AND gate is designed for 1.

📥 Download Datasheet

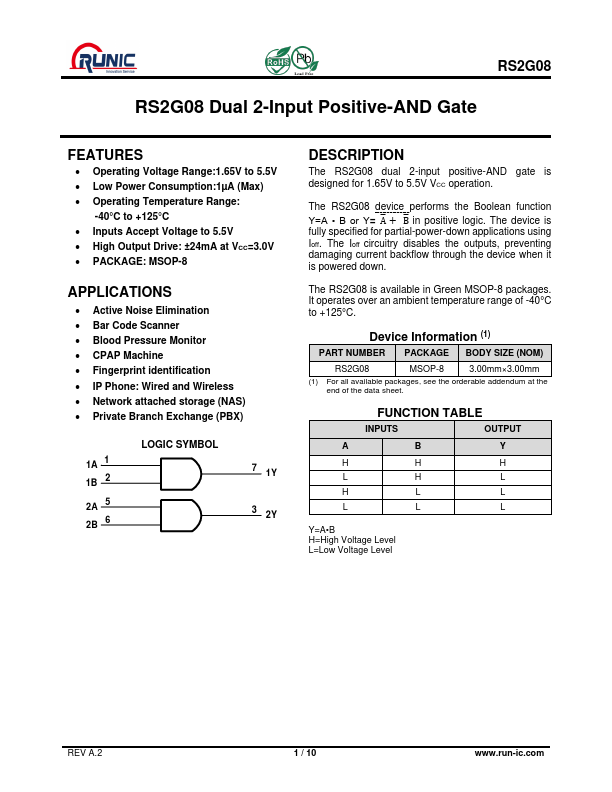

Preview of RS2G08 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS2G08
Manufacturer
RUNIC
File Size
341.46 KB
Datasheet
RS2G08-RUNIC.pdf
Description
Dual 2-Input Positive-AND Gate

Features

* Operating Voltage Range:1.65V to 5.5V
* Low Power Consumption:1µA (Max)
* Operating Temperature Range: -40°C to +125°C
* Inputs Accept Voltage to 5.5V
* High Output Drive: ±24mA at VCC=3.0V

Applications

* Active Noise Elimination
* Bar Code Scanner
* Blood Pressure Monitor
* CPAP Machine
* Fingerprint identification
* IP Phone: Wired and Wireless
* Network attached storage (NAS)
* Private Branch Exchange (PBX) 1A 1 1B 2 2A 5 2B 6 LOG
