Datasheet Details
- Part number
- RS3003
- Manufacturer
- RUNIC
- File Size
- 331.37 KB
- Datasheet
- RS3003-RUNIC.pdf
- Description
- High Voltage CMOS LDO Regulator
RS3003 Description
RS3003 150mA, Low Power Consumption, High Voltage CMOS LDO Regulator .
The RS3003 series is a set of low power high voltage regulators implemented in CMOS technology.
RS3003 Features
* Low Power Consumption
* 150mA Nominal Output Current
* Low Dropout Voltage
* Low Temperature Coefficient
* High Input Voltage (up to 36V)
* Output Voltage Accuracy:±2.5%
* Operating Temperature Range:
-40°C to +85°C
* Micro SIZE PACKA
RS3003 Applications
* Audio/Video Equipment
* Communication Equipment
* Battery-Powered Equipment
* Laptop, Palmtops, Notebook Computers

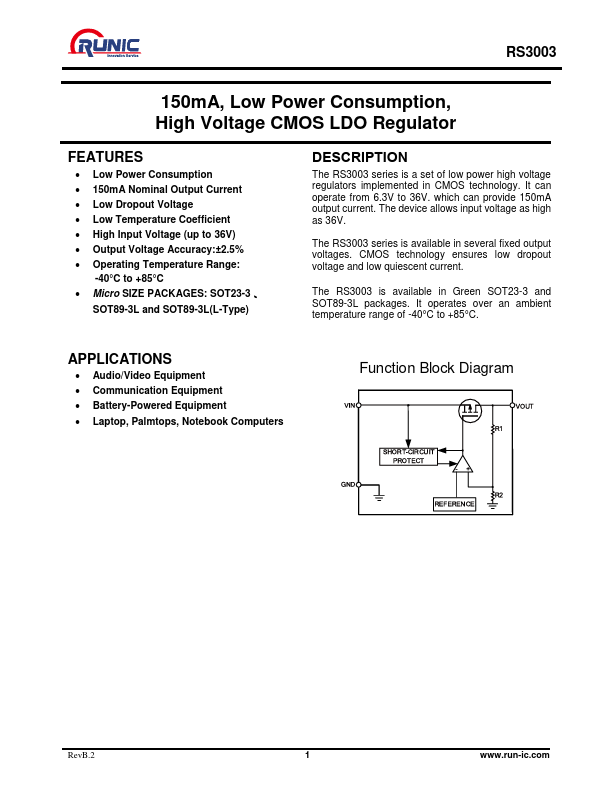

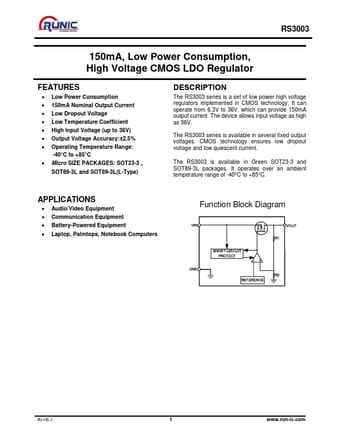

Function Block Diagram
RevB.2
1
www. run-ic. com
PIN CONFIGURATIONS
RS3003
SAXX
GND 1
3 VIN
VOUT 2
SOT23-3
GND
VIN
SAXX
SAXXL
1
2
3
VO
