RS3005
FEATURES
- Low Power Consumption
- 150m A Nominal Output Current
- Low Dropout Voltage
- Low Temperature Coefficient
- High Input Voltage (up to 36V)
- Output Voltage Accuracy: ±2.5%
- Operating Temperature Range:
-40°C to +85°C
- Micro SIZE PACKAGES: SOT23-3、
SOT89-3L and SOT89-3L(L-Type)
APPLICATIONS
- Audio/Video Equipment
- munication Equipment
- Battery-Powered Equipment
- Laptop, Palmtops, Notebook puters
DESCRIPTION
The RS3005 series is a set of low power high voltage regulators implemented in CMOS technology. It can operate from 2.5V to 36V. which can provide 150m A output current. The device allows input voltage as high as 36V.
The RS3005 series is available in several fixed output voltages. CMOS technology ensures low dropout voltage and low quiescent current.
The RS3005 is available in Green SOT23-3 and SOT89-3L packages. It operates over an ambient temperature range of -40°C to +85°C.

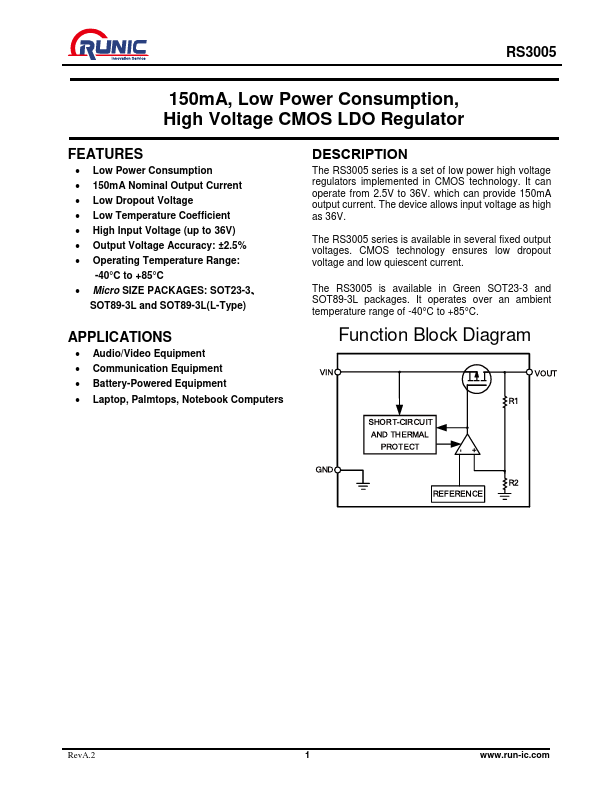

Function Block Diagram
Rev A.2
.run-ic.

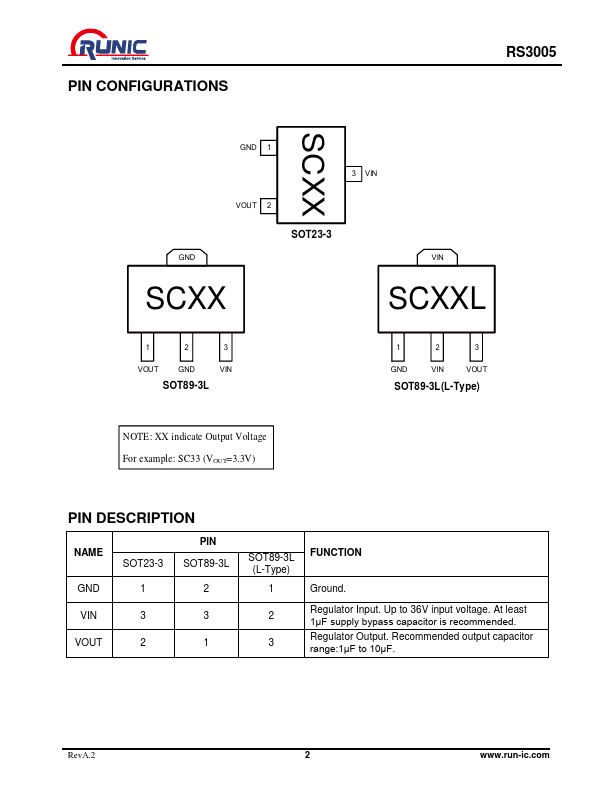

PIN CONFIGURATIONS
SCXX
GND 1
3...
