RS331, General-Purpose Low-Voltage Open-Drain Output Comparator

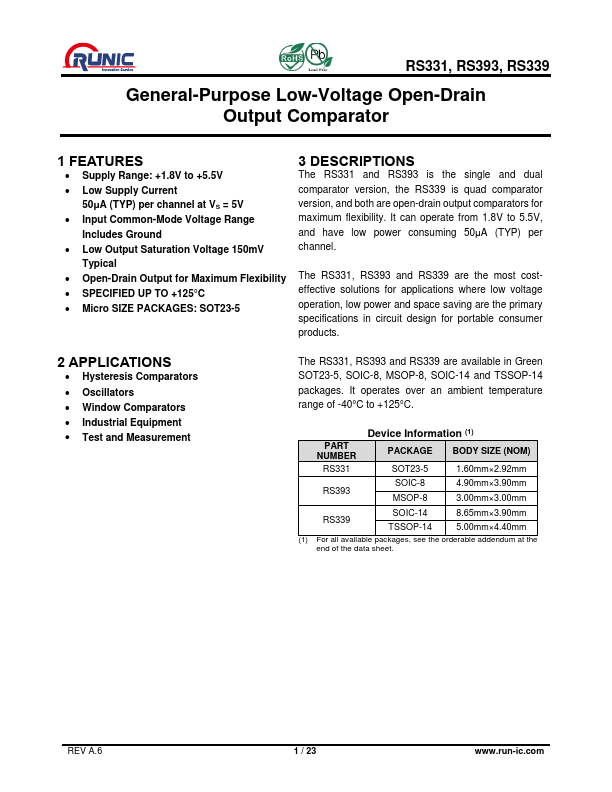

RS331, RS393, RS339 General-Purpose Low-Voltage Open-Drain Output Comparator 1 .
The RS331 and RS393 is the single and dual comparator version, the RS339 is quad comparator version, and both are open-drain output comparators for m.

datasheet Preview Page 1 from Datasheet4u.com

RS331-RUNIC.pdf

RS331 Datasheet Preview — Preview of RS331 PDF

Datasheet Details

Part number:

RS331

Manufacturer:

RUNIC

File Size:

445.18 KB

Description:

General-Purpose Low-Voltage Open-Drain Output Comparator

Features

* Supply Range: +1.8V to +5.5V
* Low Supply Current 50μA (TYP) per channel at VS = 5V
* Input Common-Mode Voltage Range Includes Ground
* Low Output Saturation Voltage 150mV Typical
* Open-Drain Output for Maximum Flexibility
* SPECIFIED UP TO +125°C

Applications

* where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products. 2 APPLICATIONS
* Hysteresis Comparators
* Oscillators
* Window Comparators
* Industrial Equipment
* Test and Measurement
