RS331-Q1 General-Purpose Low-Voltage Open-Drain Output Comparator

RUNIC

Description

RS331_RS393_RS339-Q1 General-Purpose Low-Voltage Open-Drain Output Comparator 1 .
The RS331-Q1 and RS393-Q1 is the single and dual comparator version, the RS339-Q1 is quad comparator version, and both are open-drain output comparat.

📥 Download Datasheet

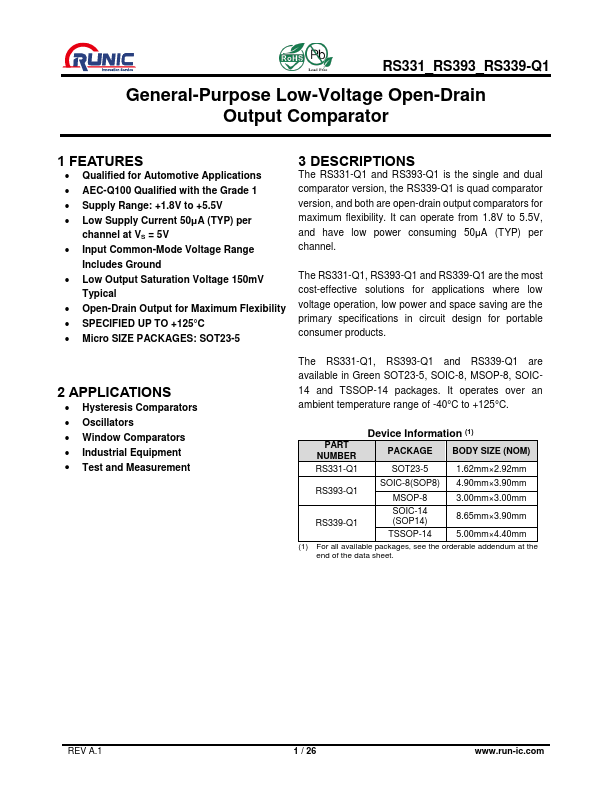

RS331-Q1 Datasheet Preview — Preview of RS331-Q1 PDF

Datasheet Specifications

Part number: RS331-Q1
Manufacturer: RUNIC
File Size: 518.85 KB
Datasheet: RS331-Q1-RUNIC.pdf
Description: General-Purpose Low-Voltage Open-Drain Output Comparator

Applications

* AEC-Q100 Qualified with the Grade 1
* Supply Range: +1.8V to +5.5V
* Low Supply Current 50μA (TYP) per channel at VS = 5V
* Input Common-Mode Voltage Range Includes Ground
* Low Output Saturation Voltage 150mV Typical
* Open-Drain Output for Maximum
