RS339, RS331 - General-Purpose Low-Voltage Open-Drain Output Comparator

RUNIC

📥 Download Datasheet

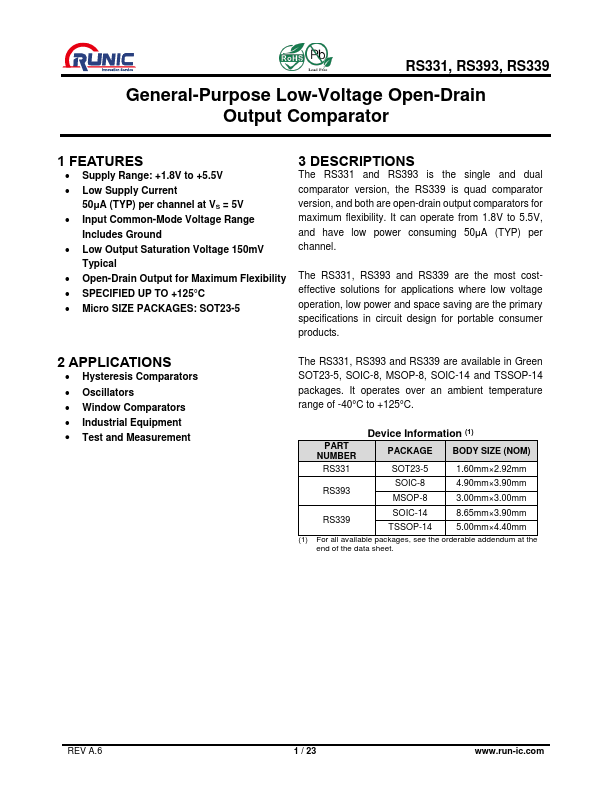

RS339 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS339, RS331. Please refer to the document for exact specifications by model.

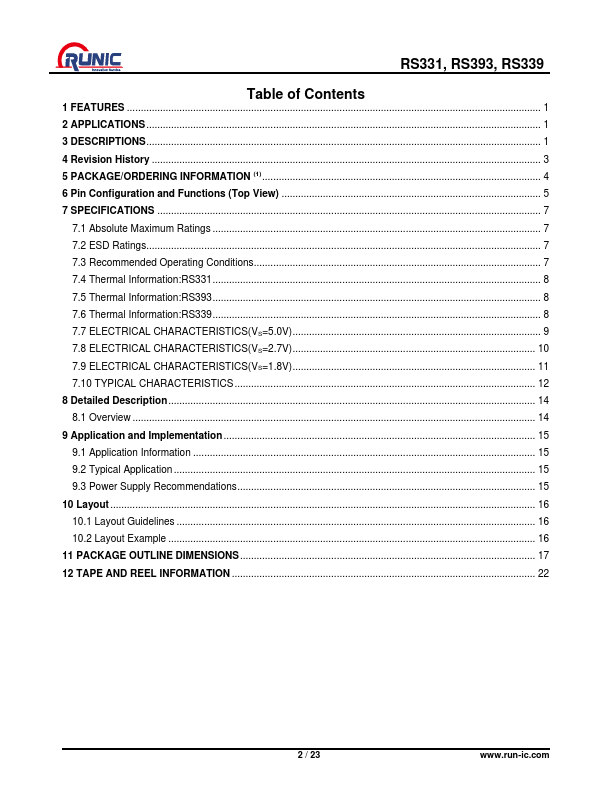

datasheet Preview Page 2

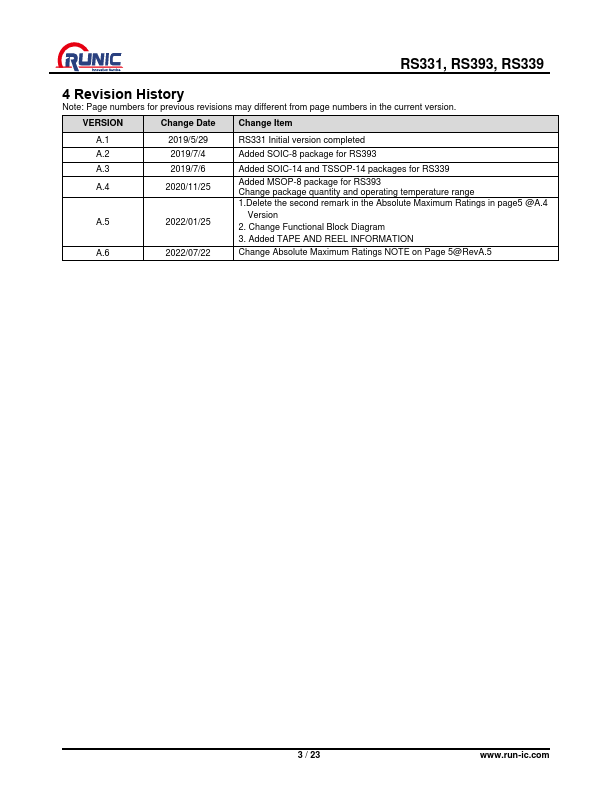

datasheet Preview Page 3

Datasheet Details

Part number	RS339, RS331
Manufacturer	RUNIC
File Size	445.18 KB
Description	General-Purpose Low-Voltage Open-Drain Output Comparator
Datasheet	RS331-RUNIC.pdf
Note	This datasheet PDF includes multiple part numbers: RS339, RS331. Please refer to the document for exact specifications by model.

RS339 Product details

Description

The RS331 and RS393 is the single and dual comparator version, the RS339 is quad comparator version, and both are open-drain output comparators for maximum flexibility.

Features

Supply Range: +1.8V to +5.5V.
Low Supply Current 50μA (TYP) per channel at VS = 5V.
Input Common-Mode Voltage Range Includes Ground.
Low Output Saturation Voltage 150mV Typical.
Open-Drain Output for Maximum Flexibility.
