RS339-Q1, RS331-Q1 Datasheet - RUNIC

RS339-Q1 General-Purpose Low-Voltage Open-Drain Output Comparator

The RS331-Q1 and RS393-Q1 is the single and dual comparator version, the RS339-Q1 is quad comparator version, and both are open-drain output comparators for maximum flexibility. It can operate from 1.8V to 5.5V, and have low power consuming 50μA (TYP) per channel. The RS331-Q1, RS393-Q1 and RS339-Q.

RS339-Q1 Features

* Qualified for Automotive Applications

* AEC-Q100 Qualified with the Grade 1

* Supply Range: +1.8V to +5.5V

* Low Supply Current 50μA (TYP) per channel at VS = 5V

* Input Common-Mode Voltage Range Includes Ground

* Low Output Saturation Voltage 150mV

RS331-Q1-RUNIC.pdf

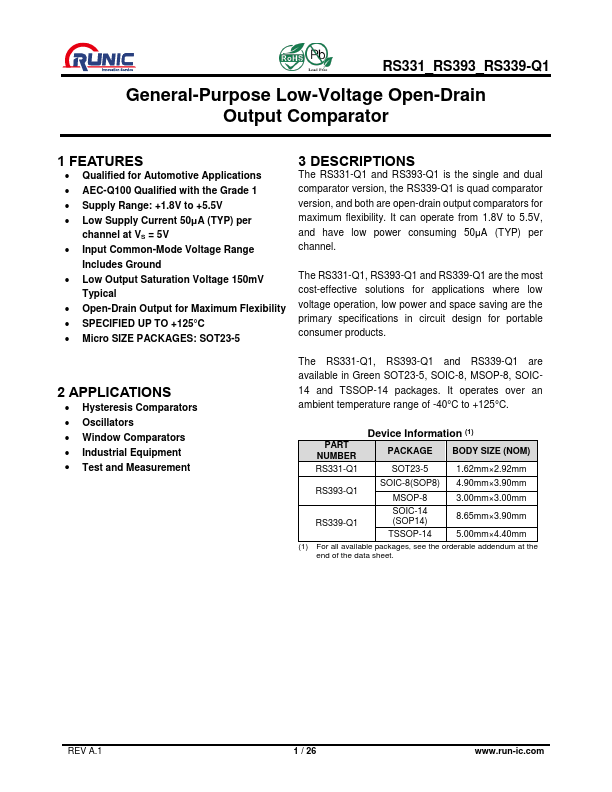

RS339-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS339-Q1, RS331-Q1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS339-Q1, RS331-Q1

Manufacturer:

RUNIC

File Size:

518.85 KB

Description:

General-purpose low-voltage open-drain output comparator.

Note:

This datasheet PDF includes multiple part numbers: RS339-Q1, RS331-Q1.
Please refer to the document for exact specifications by model.
