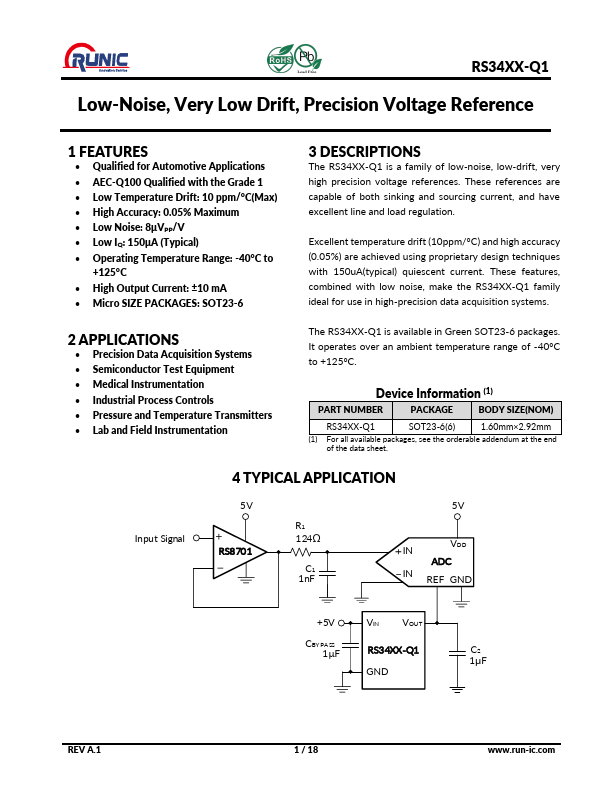

RS3413XH6-Q1
FEATURES
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1
- Low Temperature Drift: 10 ppm/°C(Max)
- High Accuracy: 0.05% Maximum
- Low Noise: 8μVPP/V
- Low IQ: 150μA (Typical)
- Operating Temperature Range: -40°C to
+125°C
- High Output Current: ±10 m A
- Micro SIZE PACKAGES: SOT23-6
3 DESCRIPTIONS
The RS34XX-Q1 is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation.
Excellent temperature drift (10ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques with 150u A(typical) quiescent current. These features
, bined with low noise, make the RS34XX-Q1 family ideal for use in high-precision data acquisition systems.
2 APPLICATIONS
- Precision Data Acquisition Systems
- Semiconductor Test Equipment
- Medical Instrumentation
- Industrial Process Controls
- Pressure and Temperature Transmitters
- Lab and...
