RS3433XH6-Q1, RS3412XH6-Q1 Precision Voltage Reference

RUNIC

Description

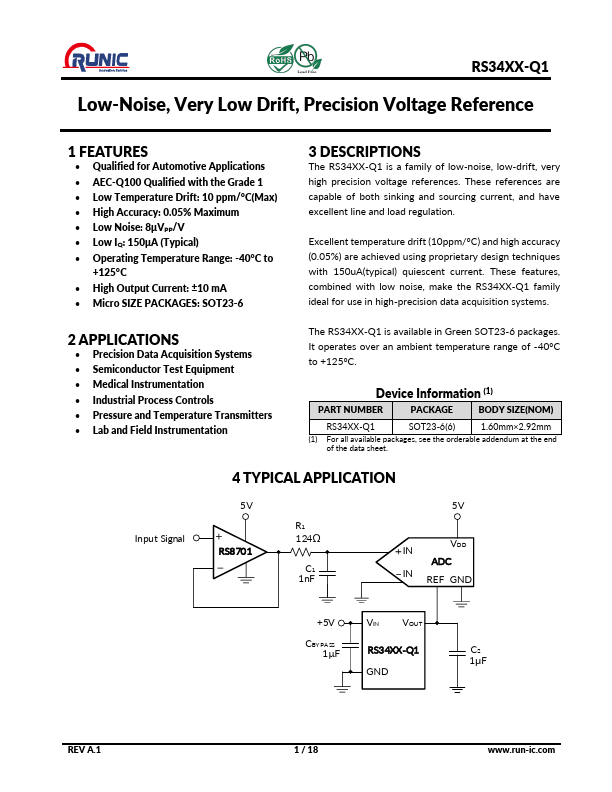

RS34XX-Q1 Low-Noise, Very Low Drift, Precision Voltage Reference 1 .
The RS34XX-Q1 is a family of low-noise, low-drift, very high precision voltage references.

📥 Download Datasheet

RS3433XH6-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS3433XH6-Q1, RS3412XH6-Q1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS3433XH6-Q1, RS3412XH6-Q1
Manufacturer: RUNIC
File Size: 756.28 KB
Datasheet: RS3412XH6-Q1-RUNIC.pdf
Description: Precision Voltage Reference
Note: This datasheet PDF includes multiple part numbers: RS3433XH6-Q1, RS3412XH6-Q1.
Please refer to the document for exact specifications by model.

Applications

* AEC-Q100 Qualified with the Grade 1
* Low Temperature Drift: 10 ppm/°C(Max)
* High Accuracy: 0.05% Maximum
* Low Noise: 8μVPP/V
* Low IQ: 150μA (Typical)
* Operating Temperature Range: -40°C to +125°C
* High Output Current: ±10 mA
* M
