RS3G04 - Triple Inverter Gate

RS3G04 Description

RS3G04 Triple Inverter Gate RS3G04 1 .
The RS3G04 Triple inverter gate is designed for 1.

RS3G04 Features

* Operating Voltage Range:1.65V to 5.5V
* Low Power Consumption:1µA (Max)
* Operating Temperature Range: -40°C to +125°C
* Input Accept Voltage to 5.5V
* High Output Drive: ±24mA at VCC=3.0V
* Ioff Supports Partial-Power-Down Mode Operation
* M

RS3G04 Applications

* AC Receiver
* Blu-ray Players and Home Theaters
* Desktops or Notebook PCs
* Digital Video Cameras (DVC)
* Mobile Phones
* Personal Navigation Device (GPS)
* Portable Media Player Functional Block Diagram 1A 1 7 1Y 2A 3 5 2Y 3A 6 2 3Y

📥 Download Datasheet

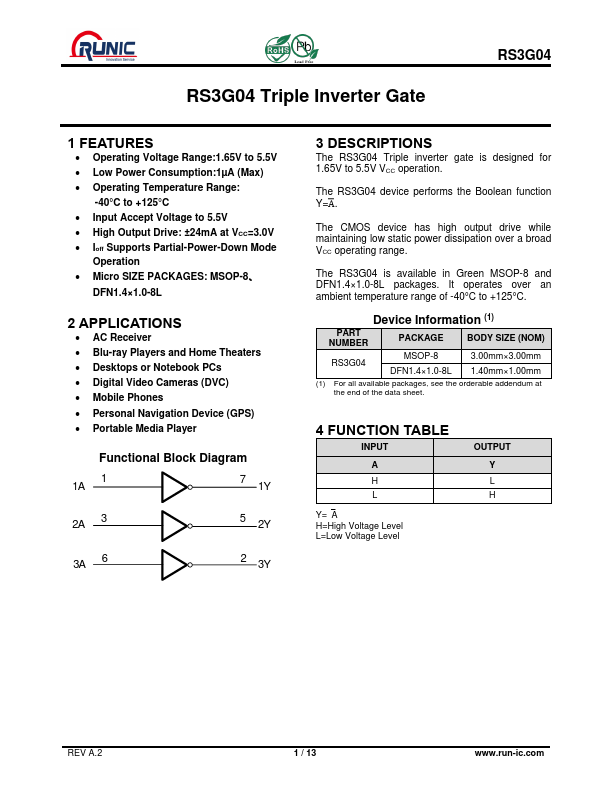

Preview of RS3G04 PDF

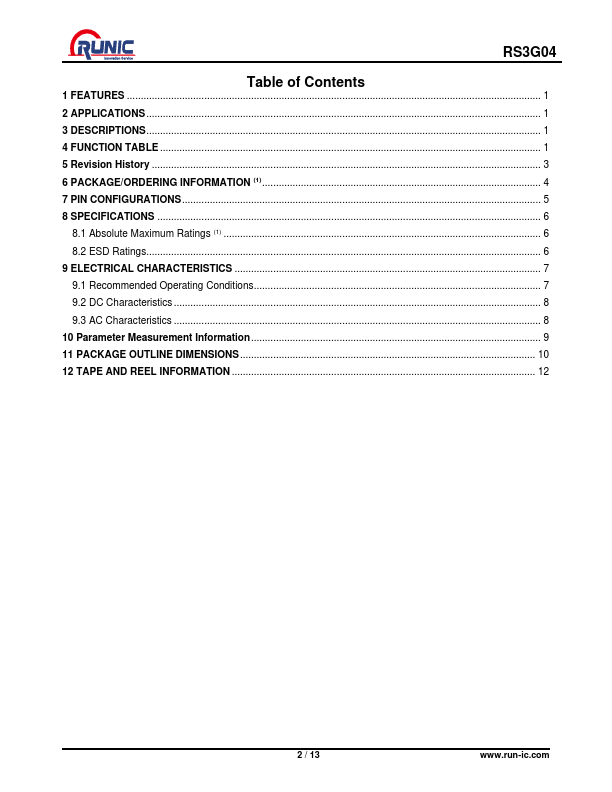

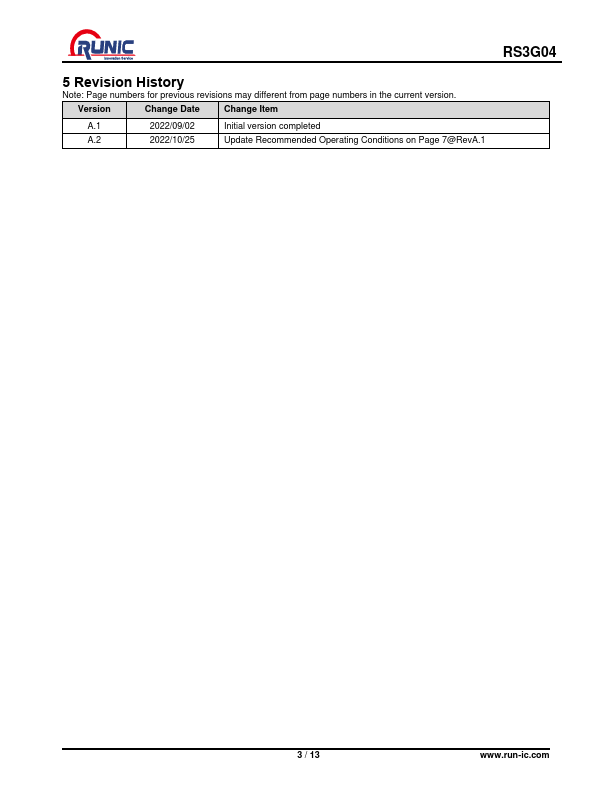

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS3G04
Manufacturer
RUNIC
File Size
383.99 KB
Datasheet
RS3G04-RUNIC.pdf
Description
Triple Inverter Gate
