RS3G14 - Triple Schmitt-Trigger Inverter

RS3G14 Description

RS3G14 RS3G14 Triple Schmitt-Trigger Inverter 1 .
The RS3G14 Triple Schmitt-trigger inverter is designed for 1.

RS3G14 Features

* Operating Voltage Range:1.65V to 5.5V
* Low Power Consumption:1µA (Max)
* Operating Temperature Range: -40°C to +125°C
* Input Accept Voltage to 5.5V
* High Output Drive: ±24mA at VCC=3.0V
* Ioff Supports Partial-Power-Down Mode Operation
* M

RS3G14 Applications

* AC Receiver and Home Theaters
* Blu-ray Players and Home Theaters
* Desktops or Notebook PCs
* Digital Video Cameras (DVC)
* Mobile Phones
* Personal Navigation Device (GPS)
* Portable Media Player Functional Block Diagram 1A 1 7 1Y 2A 3

📥 Download Datasheet

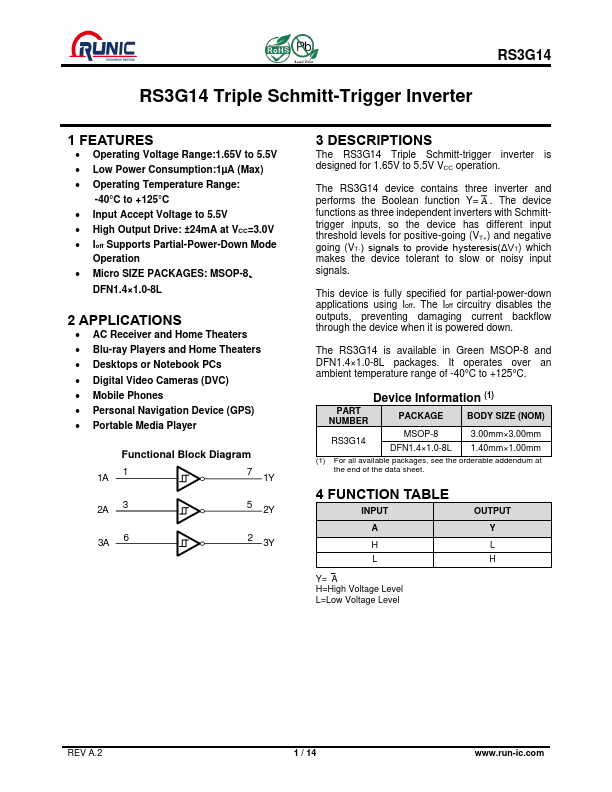

Preview of RS3G14 PDF

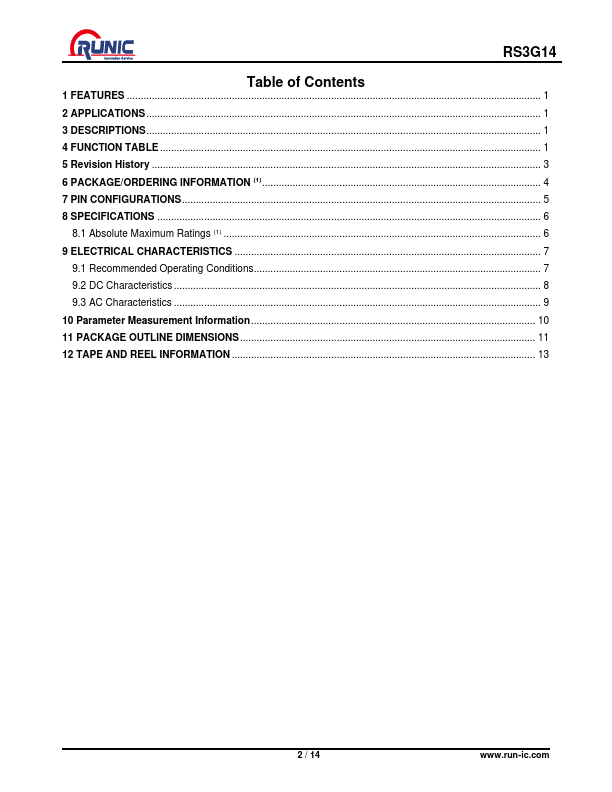

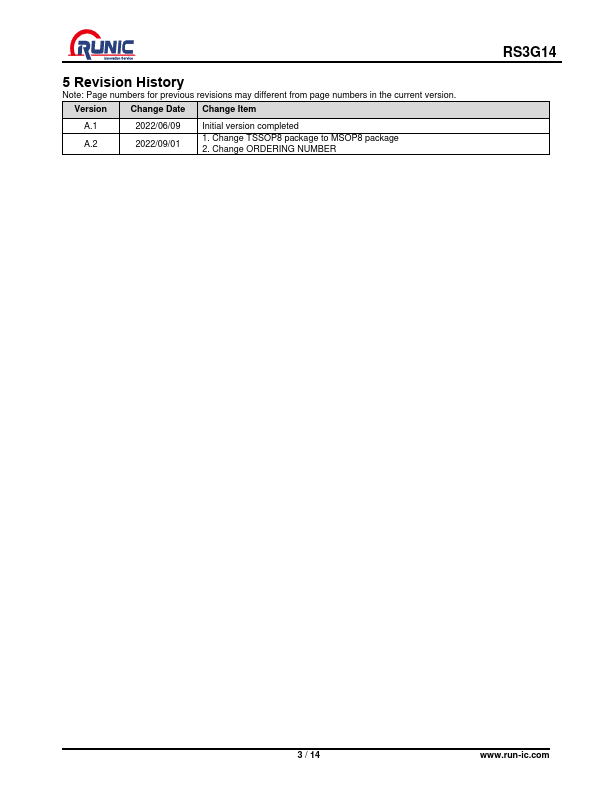

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS3G14
Manufacturer
RUNIC
File Size
354.48 KB
Datasheet
RS3G14-RUNIC.pdf
Description
Triple Schmitt-Trigger Inverter
