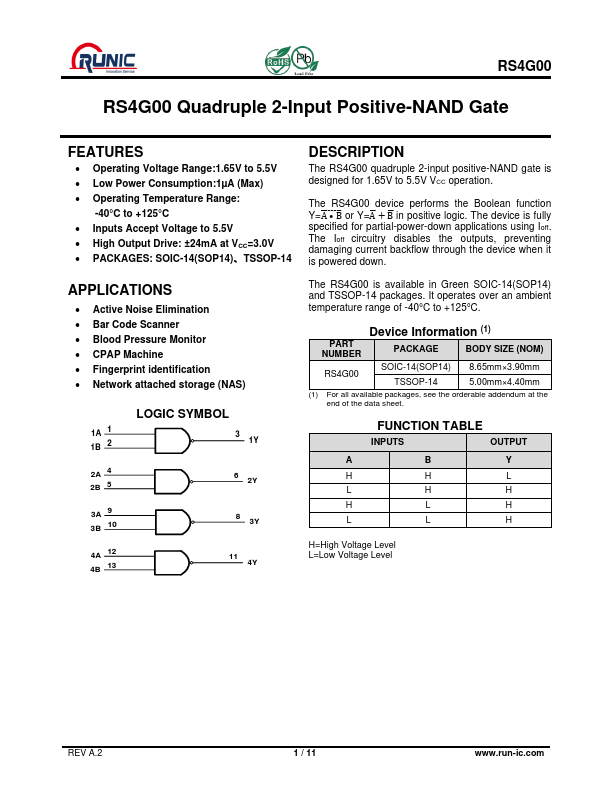

RS4G00 - Quadruple 2-Input Positive-NAND Gate

RUNIC

RS4G00 Datasheet Preview — Preview of RS4G00 PDF

Datasheet Details

Part number	RS4G00
Manufacturer	RUNIC
File Size	382.28 KB
Description	Quadruple 2-Input Positive-NAND Gate
Datasheet	RS4G00-RUNIC.pdf

RS4G00 Product details

Description

The RS4G00 quadruple 2-input positive-NAND gate is designed for 1.65V to 5.5V VCC operation. ̅̅B̅ or Y=A̅ + B̅ in positive logic. Active Noise Elimination Bar Code Scanner Blood Pressure Monit

Features

Operating Voltage Range:1.65V to 5.5V.
Low Power Consumption:1µA (Max).
Operating Temperature Range: -40°C to +125°C.
Inputs Accept Voltage to 5.5V.
High Output Drive: ±24mA at VCC=3.0V.
