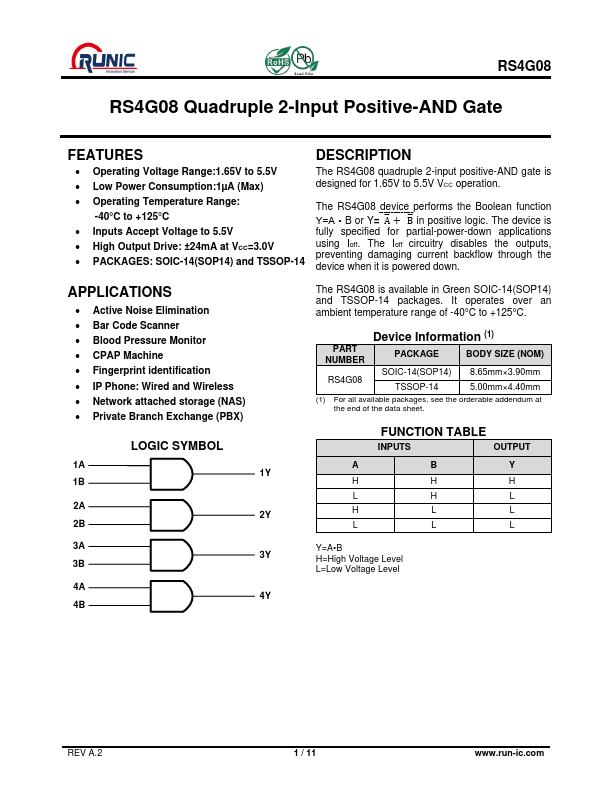

RS4G08
FEATURES
- Operating Voltage Range:1.65V to 5.5V
- Low Power Consumption:1µA (Max)
- Operating Temperature Range:
-40°C to +125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24m A at VCC=3.0V
- PACKAGES: SOIC-14(SOP14) and TSSOP-14
DESCRIPTION
The RS4G08 quadruple 2-input positive-AND gate is designed for 1.65V to 5.5V VCC operation.
The RS4G08 device performs the Boolean function Y=A
- B or Y=̅̅A̅̅̅+̅̅̅̅B̅ in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
APPLICATIONS
- Active Noise Elimination
- Bar Code Scanner
- Blood Pressure Monitor
- CPAP Machine
- Fingerprint identification
- IP Phone: Wired and Wireless
- Network attached storage (NAS)
- Private Branch Exchange (PBX)
LOGIC SYMBOL
1A 1Y
1B
2A 2Y
2B

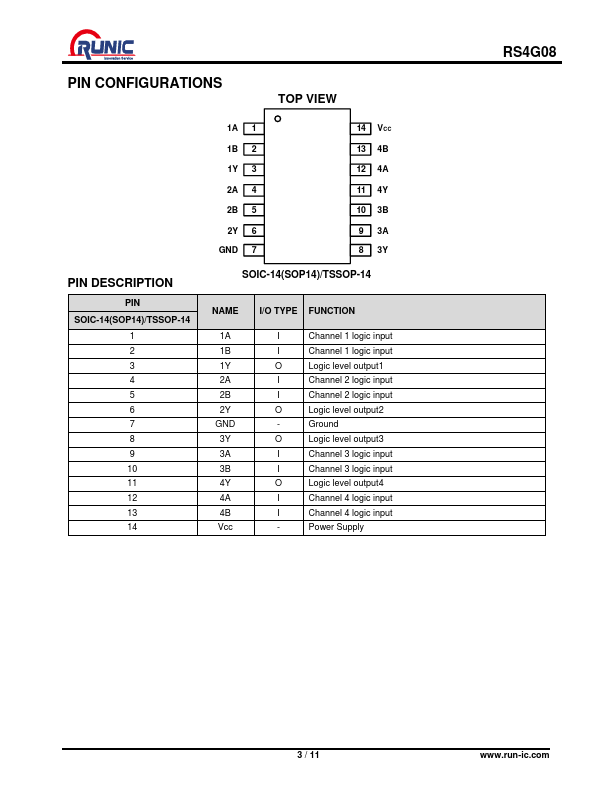

The RS4G08 is available in Green SOIC-14(SOP14) and TSSOP-14 packages. It operates over an ambient...
