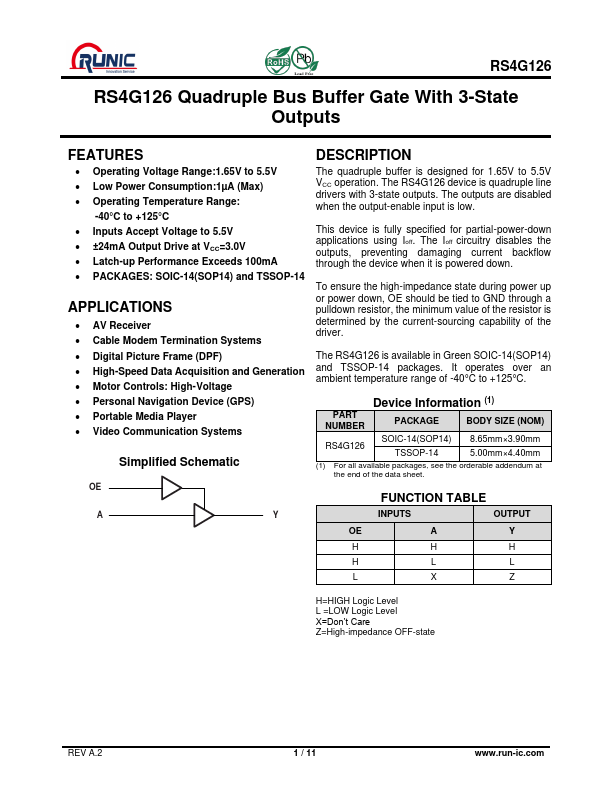

RS4G126
FEATURES
DESCRIPTION
- Operating Voltage Range:1.65V to 5.5V
- Low Power Consumption:1µA (Max)
- Operating Temperature Range:
-40°C to +125°C
- Inputs Accept Voltage to 5.5V
- ±24m A Output Drive at VCC=3.0V
- Latch-up Performance Exceeds 100m A
- PACKAGES: SOIC-14(SOP14) and TSSOP-14
APPLICATIONS
- AV Receiver
- Cable Modem Termination Systems
- Digital Picture Frame (DPF)
- High-Speed Data Acquisition and Generation
- Motor Controls: High-Voltage
The quadruple buffer is designed for 1.65V to 5.5V VCC operation. The RS4G126 device is quadruple line drivers with 3-state outputs. The outputs are disabled when the output-enable input is low.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor, the minimum value of the...
