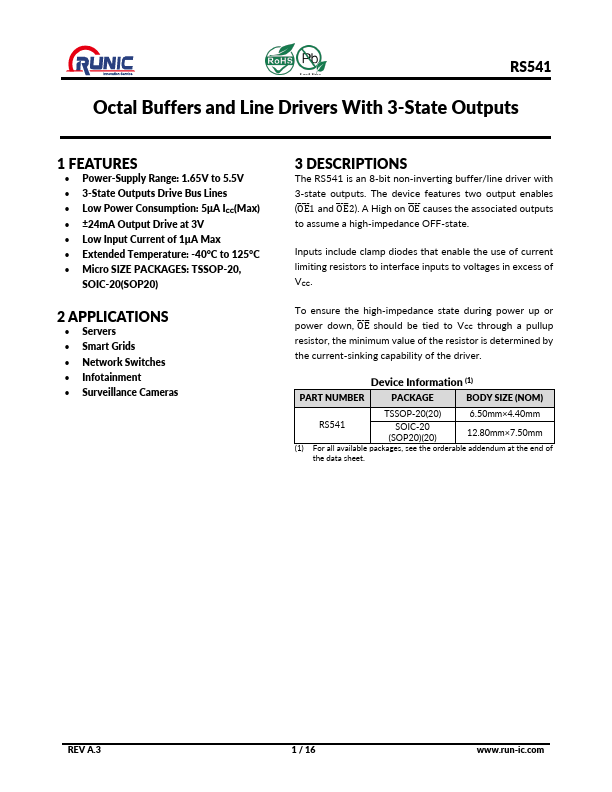

RS541
FEATURES
- Power-Supply Range: 1.65V to 5.5V
- 3-State Outputs Drive Bus Lines
- Low Power Consumption: 5μA ICC(Max)
- ±24m A Output Drive at 3V
- Low Input Current of 1μA Max
- Extended Temperature: -40°C to 125°C
- Micro SIZE PACKAGES: TSSOP-20,
SOIC-20(SOP20)
2 APPLICATIONS
- Servers
- Smart Grids
- Network Switches
- Infotainment
- Surveillance Cameras
3 DESCRIPTIONS
The RS541 is an 8-bit non-inverting buffer/line driver with
3-state outputs. The device features two output enables (O̅̅̅E̅1 and O̅̅̅E̅2). A High on O̅̅̅E̅ causes the associated outputs to assume a high-impedance OFF-state.
Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
To ensure the high-impedance state during power up or power down, O̅̅̅E̅ should be tied to VCC through a pullup resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver.
Device Information (1)
PART NUMBER
PACKAGE
BODY...
