RS573
FEATURES
- Power-Supply Range:1.65V to 5.5V
- mon 3-state Output Enable Input
- Balanced Propagation Delays
- Overvoltage Tolerant Inputs to 5.5V
- Low Power Consumption: 8μA(Max)
- Low Input Current: 1μA(Max)
- Extended Temperature: -40°C to +125°C
2 APPLICATIONS
- Power Sub-Station Controls
- Industrial
- Personal Electronics
- Test and Measurement Solutions
- Patient Monitoring
3 DESCRIPTIONS

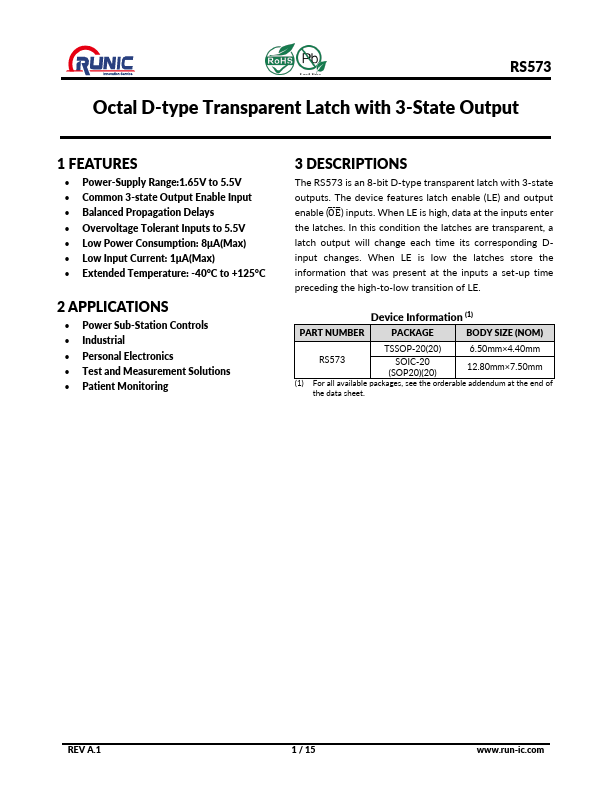

The RS573 is an 8-bit D-type transparent latch with 3-state outputs. The device features latch enable (LE) and output enable (O̅̅̅E̅) inputs. When LE is high, data at the inputs enter the latches. In this condition the latches are transparent, a latch output will change each time its corresponding Dinput changes. When LE is low the latches store the information that was present at the inputs a set-up time preceding the high-to-low transition of LE.
Device Information (1)
PART NUMBER
PACKAGE
BODY SIZE (NOM)
TSSOP-20(20)
6.50mm×4.40mm
SOIC-20 (SOP20)(20)
12.80mm×7.50mm
(1) For...
