RS574 Octal Edge-Triggered D-Type Flip-Flops

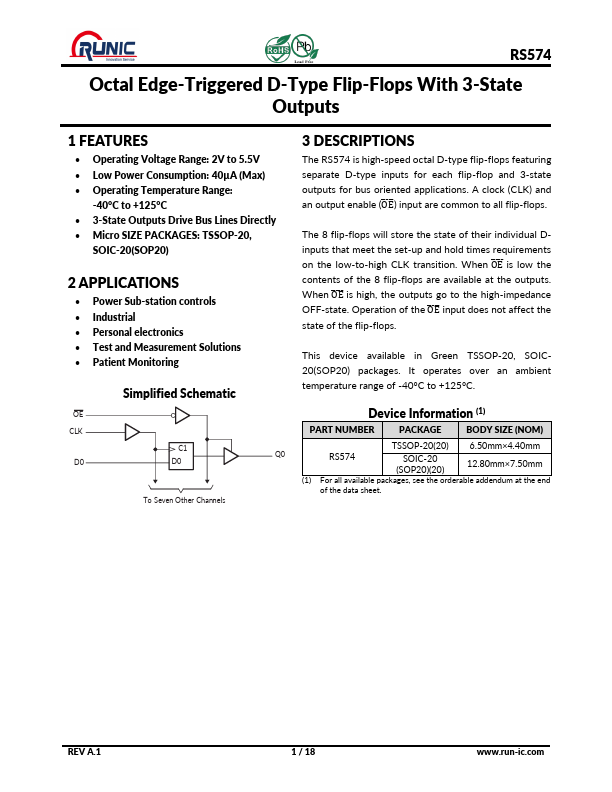

The RS574 is high-speed octal D-type flip-flops featuring separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A clock (CLK) and an output enable (O̅̅̅E̅) input are common to all flip-flops. The 8 flip-flops will store the state of their individual Dinputs t.

RS574 Features

* Operating Voltage Range: 2V to 5.5V

* Low Power Consumption: 40µ A (Max)

* Operating Temperature Range: -40°C to +125°C

* 3-State Outputs Drive Bus Lines Directly

* Micro SIZE PACKAGES: TSSOP-20, SOIC-20(SOP20) 2 APPLICATIONS

* Power Sub-station con

RS574-RUNIC.pdf
