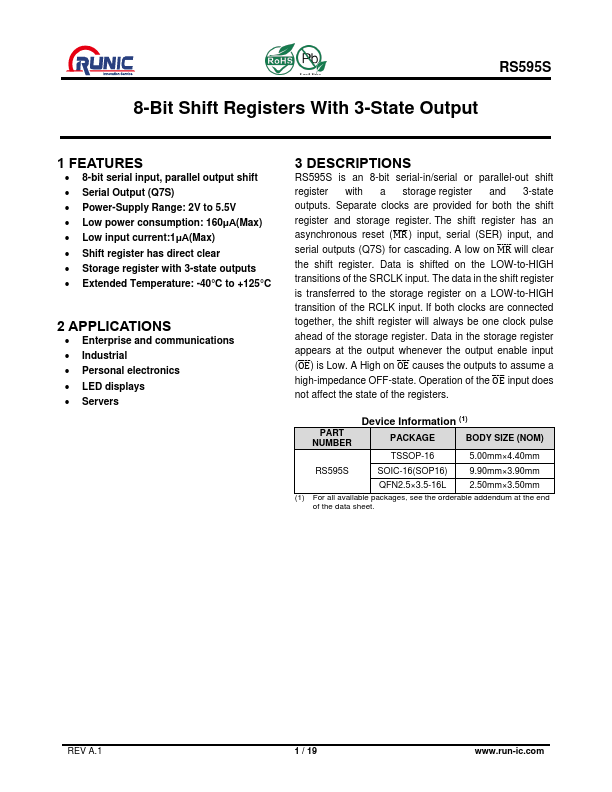

RS595S
FEATURES
- 8-bit serial input, parallel output shift
- Serial Output (Q7S)
- Power-Supply Range: 2V to 5.5V
- Low power consumption: 160μA(Max)
- Low input current:1μA(Max)
- Shift register has direct clear
- Storage register with 3-state outputs
- Extended Temperature: -40°C to +125°C
2 APPLICATIONS
- Enterprise and munications
- Industrial
- Personal electronics
- LED displays
- Servers
3 DESCRIPTIONS
RS595S is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs. Separate clocks are provided for both the shift register and storage register. The shift register has an asynchronous reset (M̅̅̅̅R̅) input, serial (SER) input, and serial outputs (Q7S) for cascading. A low on M̅̅̅̅R̅ will clear the shift register. Data is shifted on the LOW-to-HIGH transitions of the SRCLK input. The data in the shift register is transferred to the storage register on a LOW-to-HIGH transition of the RCLK input. If both clocks are connected together, the...
