RS8901 Push-Pull Output Comparator

RUNIC

Description

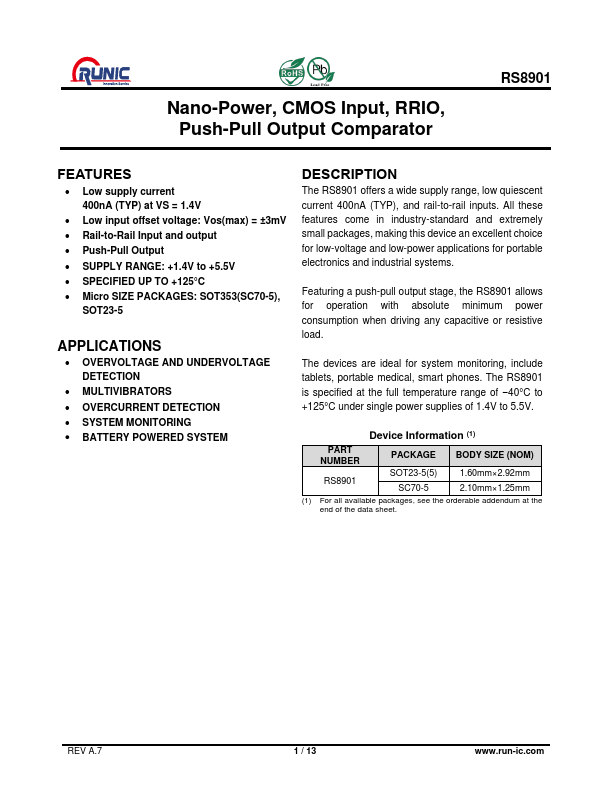

Nano-Power, CMOS Input, RRIO, Push-Pull Output Comparator RS8901 .
The RS8901 offers a wide supply range, low quiescent current 400nA (TYP), and rail-to-rail inputs.

📥 Download Datasheet

RS8901 Datasheet Preview — Preview of RS8901 PDF

Datasheet Specifications

Part number: RS8901
Manufacturer: RUNIC
File Size: 454.88 KB
Datasheet: RS8901-RUNIC.pdf
Description: Push-Pull Output Comparator

Features

* Low supply current 400nA (TYP) at VS = 1.4V
* Low input offset voltage: Vos(max) = ±3mV
* Rail-to-Rail Input and output
* Push-Pull Output
* SUPPLY RANGE: +1.4V to +5.5V
* SPECIFIED UP TO +125°C
* Micro SIZE PACKAGES: SOT353(SC70-5), SOT23-5

Applications

* OVERVOLTAGE AND UNDERVOLTAGE DETECTION
* MULTIVIBRATORS
* OVERCURRENT DETECTION
* SYSTEM MONITORING
