RS8904 Push-Pull Output Comparator

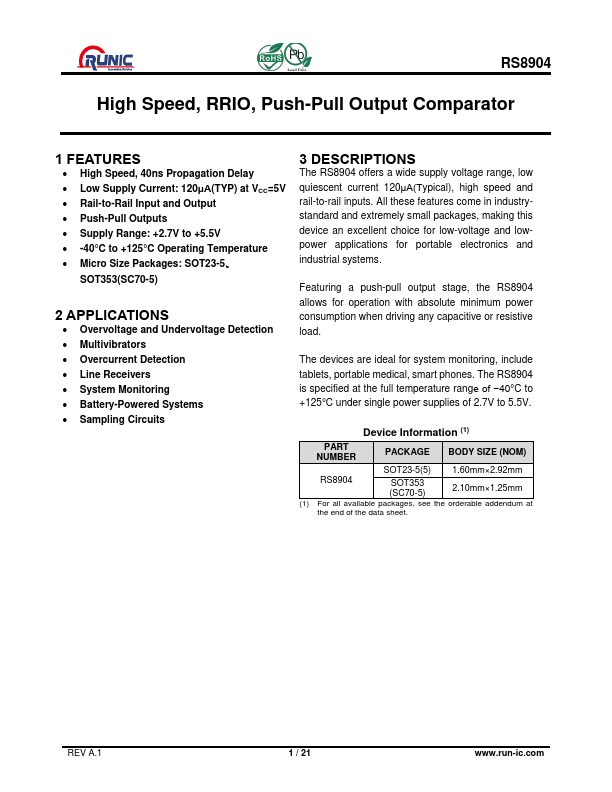

📥 Download Datasheet  Datasheet Preview Page 1

Description

RS8904 High Speed, RRIO, Push-Pull Output Comparator 1 .
The RS8904 offers a wide supply voltage range, low quiescent current 120μA(Typical), high speed and rail-to-rail inputs.

📥 Download Datasheet

Preview of RS8904 PDF

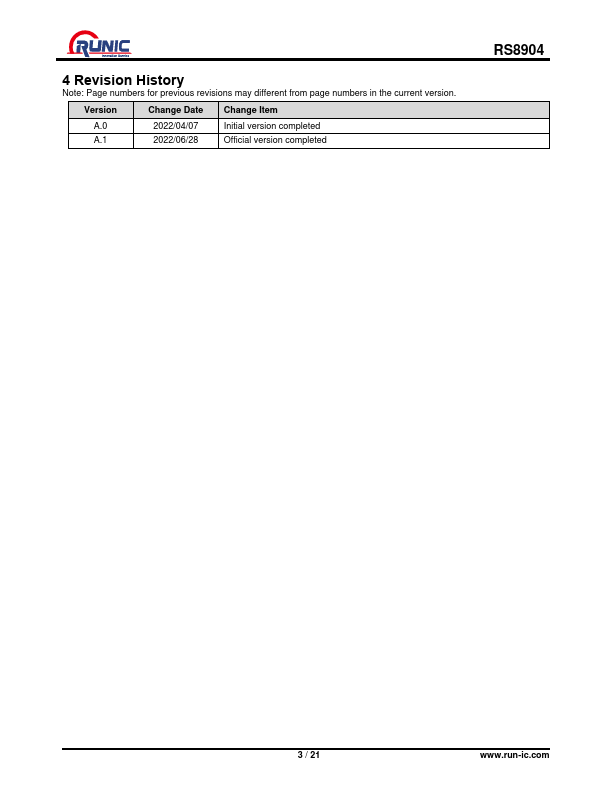

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS8904
Manufacturer
RUNIC
File Size
491.99 KB
Datasheet
RS8904-RUNIC.pdf
Description
Push-Pull Output Comparator

Features

* High Speed, 40ns Propagation Delay
* Low Supply Current: 120μA(TYP) at VCC=5V
* Rail-to-Rail Input and Output
* Push-Pull Outputs
* Supply Range: +2.7V to +5.5V
* -40°C to +125°C Operating Temperature
* Micro Size Packages: SOT23-5、 SOT353(SC

Applications

* Overvoltage and Undervoltage Detection
* Multivibrators
* Overcurrent Detection
* Line Receivers
* System Monitoring
* Battery-Powered Systems
