RS8905 Push-Pull Output Comparator

RUNIC

Description

Nano-Power, CMOS Input, RRIO, Push-Pull Output Comparator RS8905 .
The RS8905 offers a wide supply range, It is a dual low power comparator with a typical power supply current of 400nA (per channel), and rail-to-rail.

📥 Download Datasheet

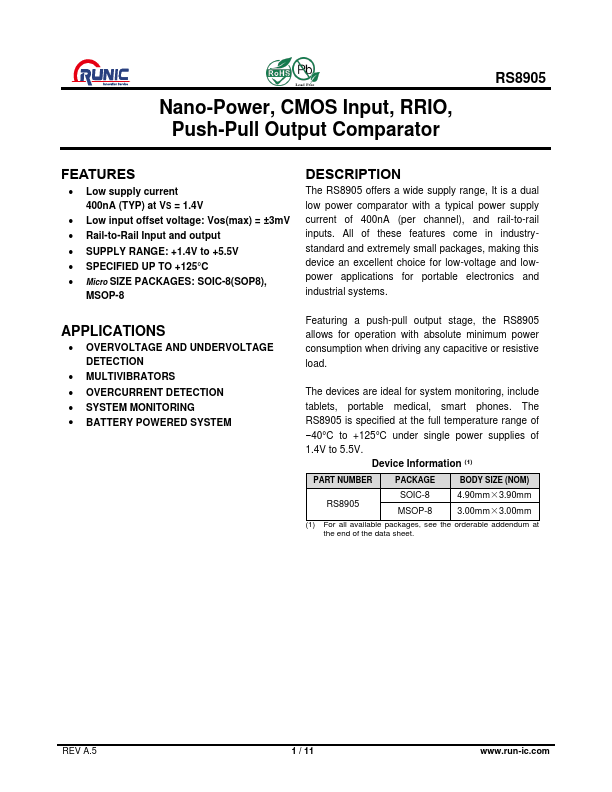

RS8905 Datasheet Preview — Preview of RS8905 PDF

Datasheet Specifications

Part number: RS8905
Manufacturer: RUNIC
File Size: 466.15 KB
Datasheet: RS8905-RUNIC.pdf
Description: Push-Pull Output Comparator

Features

* Low supply current 400nA (TYP) at VS = 1.4V
* Low input offset voltage: Vos(max) = ±3mV
* Rail-to-Rail Input and output
* SUPPLY RANGE: +1.4V to +5.5V
* SPECIFIED UP TO +125°C

Applications

* for portable electronics and industrial systems. APPLICATIONS
* OVERVOLTAGE AND UNDERVOLTAGE DETECTION
* MULTIVIBRATORS
* OVERCURRENT DETECTION
* SYSTEM MONITORING
* BATTERY POWERED SYSTEM Featuring a push-pull output stage, the RS8905 allows for operation w
