RS8912 2.2V Push-Pull Output Comparator

RUNIC

Description

RS8912 Nano-Power, RRIO, 2.3V, Push-Pull Output Comparator with Voltage Reference .
The RS8912 is a push-pull output comparator.

📥 Download Datasheet

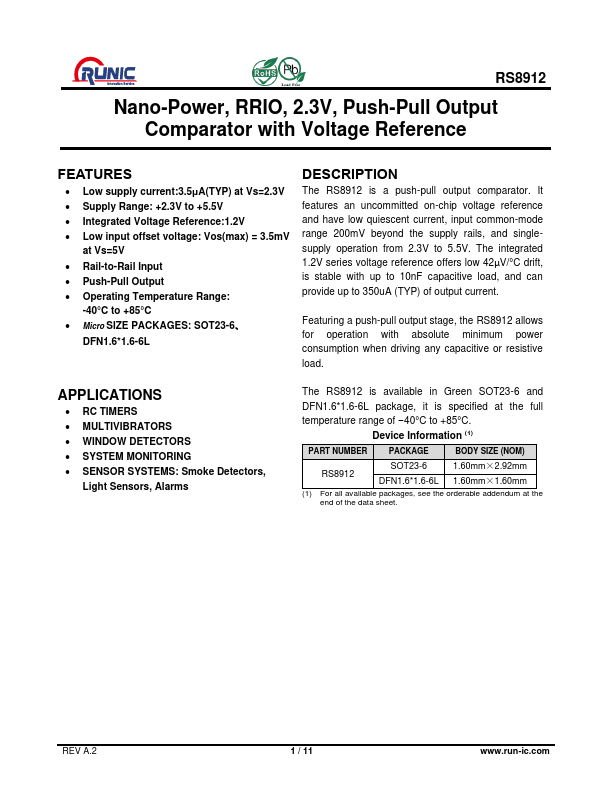

RS8912 Datasheet Preview — Preview of RS8912 PDF

Datasheet Specifications

Part number: RS8912
Manufacturer: RUNIC
File Size: 456.00 KB
Datasheet: RS8912-RUNIC.pdf
Description: 2.2V Push-Pull Output Comparator

Features

* Low supply current:3.5μA(TYP) at Vs=2.3V
* Supply Range: +2.3V to +5.5V
* Integrated Voltage Reference:1.2V
* Low input offset voltage: Vos(max) = 3.5mV at Vs=5V
* Rail-to-Rail Input
* Push-Pull Output
* Operating Temperature Range: -40°C to

Applications

* RC TIMERS
* MULTIVIBRATORS
* WINDOW DETECTORS
* SYSTEM MONITORING
* SENSOR SYSTEMS: Smoke Detectors, Light Sensors, Alarms The RS8912 is available in Green SOT23-6 and DFN1.6
* 1.6-6L package, it is specified at the full temperature range of
* 40°C
