RZC2013

27V Synchronous Step-Down Converter

RZC2013 Features

* 2A Output Current

* Wide 4.75V to 27V Operating Voltage

* Integrated 130mΩ Power MOSFET Switches

* Output Adjustable from 0.925V to 0.8VIN

* Up to 93% Efficiency

* Programmable Soft-Start

* Stable with Low ESR Ceramic Output Capacitors

* Fixed 34

RZC2013 General Description

The RZC2013 is a monolithic synchronous buck regulator. The device integrates two 130mR MOSFETs, and provides 2A of continuous load current over a wide input voltage of 4.75V to 27V. Current mode control provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start prev.

RZC2013 Datasheet (1.05 MB)

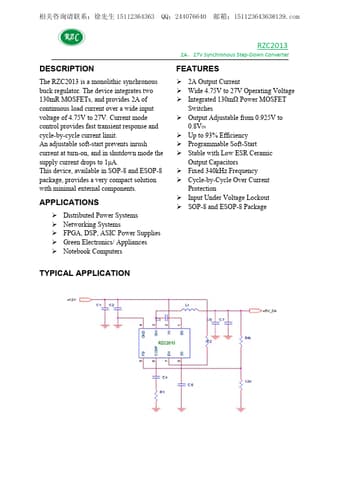

Preview of RZC2013 PDF

Datasheet Details

Part number:

RZC2013

Manufacturer:

RZC

File Size:

1.05 MB

Description:

27v synchronous step-down converter.
