MT7620 - Integrated 802.11n MAC/BBP and 2.4 GHz RF/FEM Router-on-a-Chip

Description

(TFBGA) 2.4 PIN DESCRIPTIONS (DRQFN) 2.5 PIN SHARING SCHEMES 2.5.1 GPIO PIN SHARE SCHEME 2.5.2 UARTF PIN SHARE SCHEME 2.5.3 RGMII PIN SHARE SCHEMES 2.5.4 WDT_RST_MODE PIN SHARE SCHEME 2.5.5 PERST_N PIN SHARE SCHEME 2.5.6 MDC/MDIO PIN SHARE SCHEME: 2.5.7 EPHY_LED PIN SHARE SCHEME 2.5.8 SPI PIN SHARE

Features

  • Embedded MIPS24KEc (580 MHz) with 64 KB ICache and 32 KB D-Cache.
  • 2T2R 2.4 GHz with 300 Mbps PHY data rate.
  • Legacy 802.11b/g and HT 802.11n modes.
  • 20/40 MHz channel bandwidth.
  • Legacy 802.11b/g and HT 802.11n modes.
  • Reverse Data Grant (RDG).
  • Maximal Ratio Combining (MRC).
  • Space Time Block Coding (STBC).
  • 16-bit SDRAM up to 64 Mbytes.
  • 16-bit DDR1/2 up to 128/256 Mbytes (MT7620A).
  • SPI, NAND Flash/SD-XC.
  • 1x USB 2.0, 1x PCIe host/device.

📥 Download Datasheet

Datasheet Details

Part number MT7620
Manufacturer Ralink
File Size 4.00 MB
Description Integrated 802.11n MAC/BBP and 2.4 GHz RF/FEM Router-on-a-Chip
Datasheet download datasheet MT7620 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MT7628 router-on-a-chip includes an 802.11n MAC and baseband MediaTek
MT7601 Current LED Driver Maximizing IC
MT7601U 802.11 b/g/n Wi-Fi-chip MediaTek
MT7602 Dual linear constant current LED driver Maxic Technology
MT7603 Linear Constant - Current LED Driver Maxic Technology

Other Datasheets by Ralink

Part Number Description
MT7620 PROGRAMMING GUIDE
MT7621 router-on-a-chip includes a 880 MHz MIPS 1004Kc CPU
MT7601U 802.11b/g/n/ Wi-Fi 1T1R Single Chip
MT7610EN 802.11a/b/g/n/ac Wi-Fi Client

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

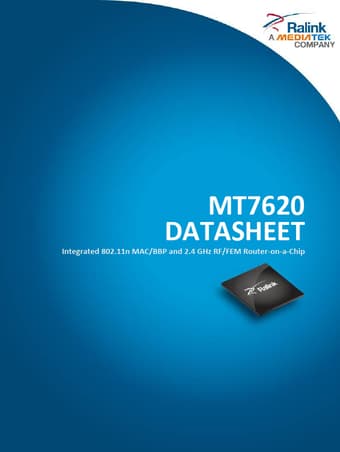

MT7620 DATASHEET Integrated 802.11n MAC/BBP and 2.4 GHz RF/FEM Router-on-a-Chip Integrated 802.11n MAC/BBP and 2.4 GHz RF/FEM Router-on-a-Chip MT7620 DATASHEET DSMT7620_V.1.3_091212 Page 1 of 54 Free Datasheet http://www.Datasheet4U.com loginid=yj.huo@z-linkelec.com,time=2012-11-23 11:46:26,ip=14.153.195.177,doctitle=MT7620_Datasheet_20121114.pdf,company=Z-Link Limited _RLT MT7620 DATASHEET Integrated 802.11n MAC/BBP and 2.4 GHz RF/FEM Router-on-a-Chip Overview The MT7620 router-on-a-chip includes an 802.11n MAC and baseband, a 2.4 GHz radio and FEM, a 580 MHz MIPS® 24K™ CPU core, a 5-port 10/100 switch and two RGMII. The MT7620 includes everything needed to build an AP router from a single chip.
