FM1110

Nonvolatile 5V Dual State Saver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Samtec Inc SFM-111-02-S-D CONN RCPT 22POS 0.05 GOLD SMD DigiKey 0 32 units
$4.29

FM1110 Datasheet (293.16 KB)

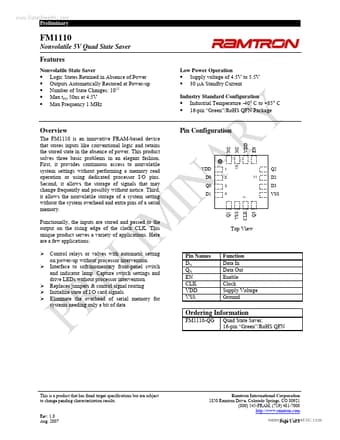

Preview of FM1110 PDF Datasheet

Datasheet Details

Part number:

FM1110

Manufacturer:

Ramtron International Corporation

File Size:

293.16 KB

Description:

Nonvolatile 5v dual state saver

FM1110 Features

* Nonvolatile State Saver

* Logic States Retained in Absence of Power

* Outputs Automatically Restored at Power-up

* Number of State Changes: 1012

* Max tPD 50ns at 4.5V

* Max Frequency 1 MHz Low Power Operation

* Supply voltage of 4.5V to 5.5V

FM1110 General Description

Pin Name D(3:0) Q(3:0) CLK EN VDD VSS I/O I O I I Supply Supply Description Data inputs Data outputs Clock: On a rising edge of CLK, the DN inputs are transferred to the QN outputs. While CLK is high or low, the QN outputs do not change regardless of the state of the data inputs. See truth table. E.
