FM21L16 - 2Mbit FRAM Memory

Datasheet Summary

Description

The FM21L16 is a 128Kx16 nonvolatile memory that reads and writes like a standard SRAM.

A ferroelectric random access memory or FRAM is nonvolatile, which means that data is retained after power is removed.

Features

2Mbit Ferroelectric Nonvolatile RAM.
Organized as 128Kx16.
Configurable as 256Kx8 Using /UB, /LB.
1014 Read/Write Cycles.
NoDelay™ Writes.
Page Mode Operation to 40MHz.
Advanced High-Reliability Ferroelectric Process SRAM Compatible.
Industry Std. 128Kx16 SRAM Pinout.
60 ns Access Time, 110 ns Cycle Time Advanced Features.
Low VDD Monitor Protects Memory against Inadvertent Writes.
Software Programmable Blo.

Datasheet Details

Part number	FM21L16
Manufacturer	Ramtron International Corporation
File Size	265.05 KB
Description	2Mbit FRAM Memory
Datasheet	FM21L16 Datasheet

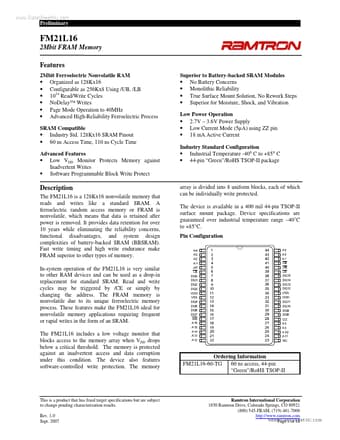

Additional preview pages of the FM21L16 datasheet.

📁 Similar Datasheet

FM21LD16 - 2Mbit F-RAM Memory (Ramtron)

FM210 - 2.0A Surface Mount Schottky Rectifier (FEC Semiconductor)

FM2100 - Schottky Barrier Diodes (Formosa MS)

FM2100 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Rectron Semiconductor)

FM2100-BS - Chip Schottky Barrier Rectifier (Formosa MS)

FM2100-C - (FM2xx-C) Chip Schottky Barrier Diodes (Formosa MS)

FM2100-M - Chip Schottky Barrier Rectifier (Formosa MS)

FM2100-MS - SMD Schottky Barrier Rectifier (Formosa MS)

FM2100A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Rectron Semiconductor)

FM2100C - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Rectron)

Full PDF Text Transcription

Click to expand full text

www.DataSheet4U.com Preliminary FM21L16 2Mbit FRAM Memory Features 2Mbit Ferroelectric Nonvolatile RAM • Organized as 128Kx16 • Configurable as 256Kx8 Using /UB, /LB • 1014 Read/Write Cycles • NoDelay™ Writes • Page Mode Operation to 40MHz • Advanced High-Reliability Ferroelectric Process SRAM Compatible • Industry Std. 128Kx16 SRAM Pinout • 60 ns Access Time, 110 ns Cycle Time Advanced Features • Low VDD Monitor Protects Memory against Inadvertent Writes • Software Programmable Block Write Protect Superior to Battery-backed SRAM Modules • No Battery Concerns • Monolithic Reliability • True Surface Mount Solution, No Rework Steps • Superior for Moisture, Shock, and Vibration Low Power Operation • 2.7V – 3.
