RT0608

6 Tones Siren / Alarm Sound Generator

RT0608 Features

* : 1. Low Operating Voltage 2V~5V. 2. CMOS process. 3. On-chip RC oscillator. 4. 6 different sounds. 5. Low stand by current. PIN DIAGRAM PIN OUT AND DESCRIPTION Symbol OSC2 OSC1 INI Description Oscillator pin with external resistor. An internal pull-up resistor. Might disable sound out of BZ1, B

RT0608 General Description

Symbol OSC2 OSC1 INI Description Oscillator pin with external resistor. An internal pull-up resistor. Might disable sound out of BZ1, BZ2 while connected GND. Ground SIREN sound output pin. Power pin. No connecting. PIN 1 2 3 I/P, O/P O/P I/P I/P GND BZ1 BZ2 VCC NC 4 5 6 7 8 O/P O/P 1 RATO Te.

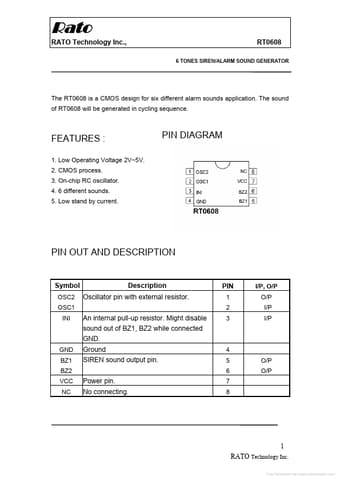

RT0608 Datasheet (200.10 KB)

Preview of RT0608 PDF

Datasheet Details

Part number:

RT0608

Manufacturer:

Rato Technology

File Size:

200.10 KB

Description:

6 tones siren / alarm sound generator.
Rato RATO Technology Inc., RT0608 6 TONES SIREN/ALARM SOUND GENERATOR The RT0608 is a CMOS design for six different alarm sounds application. The sou.
