RC1604B-FHW-ESX - Display

Raystar

The RC1604B-FHW-ESX by Raystar is a Display. Below is the official datasheet preview.

📥 Download Datasheet

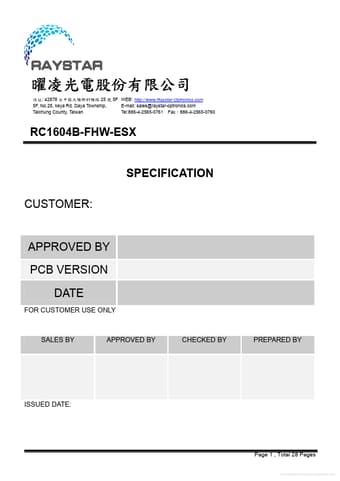

RC1604B-FHW-ESX Display by Raystar - Datasheet Preview — Official preview page of the **RC1604B-FHW-ESX** Display datasheet (Raystar).

Datasheet Details

Part number	RC1604B-FHW-ESX
Manufacturer	Raystar
File Size	1.65 MB
Description	Display
Datasheet	RC1604B-FHW-ESX_Raystar.pdf
Additional preview pages of the RC1604B-FHW-ESX datasheet.

RC1604B-FHW-ESX Product details

Description

Character Generator ROM Pattern Instruction Table Timing Characteristics Initializing of LCM Optical Characteristics Absolute Maximum Ratings Electrical Characteristics Backlight Information Reliability Inspection specification Precautions in use of LCD Modules Material List of Components for RoHs Page 3 4 5 6 7 8 11 12 13 15 17 18 18 19 20 21 25 26 Page 2 , Total 28 Pages Free Datasheet http://www.datasheet4u.com/ RC1604B-FHW-ESX 1. Revision History DATE 2009/10/28 VERSION 1 REVISED PAGE NO

Features

is described as follow:.
Module dimension: 70.6 x 60.0 x 8.9 (max. ) mm3 View area: 60.0 x 32.6 mm2 Active area: 56.20 x 20.8 mm2 Number of Characters: 16 characters x 4 Lines Dot size: 0.55 x 0.55 mm2 Dot pitch: 0.60 x 0.60 mm2 Character size: 2.95 x 4.75 mm2 Character pitch: 3.55 x 5.35 mm2 LCD type: FSTN Positive Duty: 1/16 View direction: 6 o’clock Backlight Type: LED, White.
