REC001602A Datasheet - Raystar

REC001602A OLED

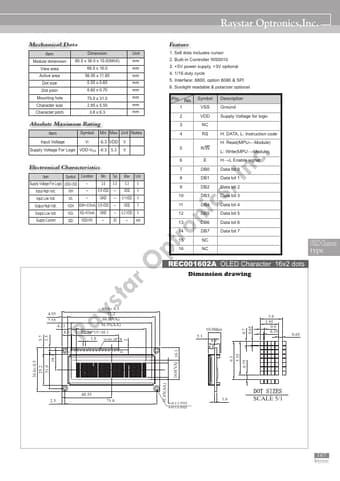

Ground Supply Voltage for logic H: DATA, L: Instruction code H: Read(MPU←Module) L: Write(MPU→Module) H→L Enable signal Data bit 0 Data bit 1 Data bit 2 Data bit 3 Data bit 4 Data bit 5 Data bit 6 Data bit 7 OLED Character type REC001602A OLED Character 16x2 dots Dimension drawing 4.95 7.55 4.23 .

36.0± 0.5 25.2 5.7 31.0 2.5 18.3 2Raystar Optronics, Inc. 11.85(AA) 16.0(VA) 10.3 6.3 5.55 0.75 0.7 0.65 Mechanical Data Item Module dimension View area Active area Dot size Dot pitch Mounting hole Character size Character pitch Dimension 80.0 x 36.0 x 10.0(MAX) 66.0 x 16.0 56.95 x 11.85 0.55 x 0.65 0.60 x 0.70 75.0 x 31.0 2.95 x 5.55 3.6 x 6.3 Unit mm mm mm mm mm mm mm mm Absolute Maximum Rating Item Symbol Min Max Unit Notes Input Voltage VI -0.3 VDD V Supply Voltage For Logic VDD-VSS.
