RMDA25000 - 23-28 GHz Driver Amplifier MMIC

Raytheon Company

📥 Download Datasheet

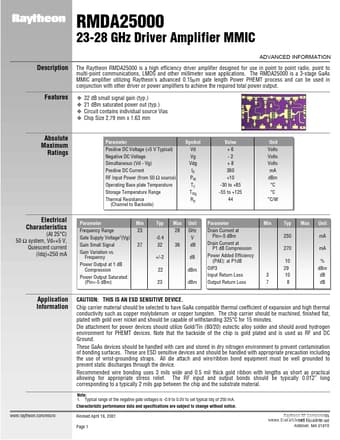

RMDA25000 Datasheet Preview — Preview of RMDA25000 PDF

Datasheet Details

Part number: RMDA25000
Manufacturer: Raytheon Company
File Size: 354.31 KB
Datasheet: RMDA25000_RaytheonCompany.pdf
Description: 23-28 GHz Driver Amplifier MMIC

RMDA25000 Product details

Description

The Raytheon RMDA25000 is a high efficiency driver amplifier designed for use in point to point radio, point to multi-point communications, LMDS and other millimeter wave applications.

Features

www. DataSheet4U. com Absolute Maximum Ratings Parameter Positive DC Voltage (+5 V Typical) Negative DC Voltage Simultaneous (Vd - Vg) Positive DC Current RF Input Power (from 50 Ω source) Operating Base plate Temperature Storage Temperature Range Thermal Resistance (Channel to Backside) Symbol Vd Vg Vdg ID PIN TC TStg Rjc Value +6 -2 +8 360 +10 -30 to +85 -55 to +125 44 Unit Volts Volts Volts mA dBm °C °C °C/W Electrical Characteristics (At 25°C) 50 Ω system, Vd=+5 V, Quiescent current (Id.
