RS100N210T N-Channel MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

ID 210A RDS(ON)(Typ ) 1.9mΩ VDSS 100V Applications: * Load Switch * PWM Applications * Power Managment .

📥 Download Datasheet

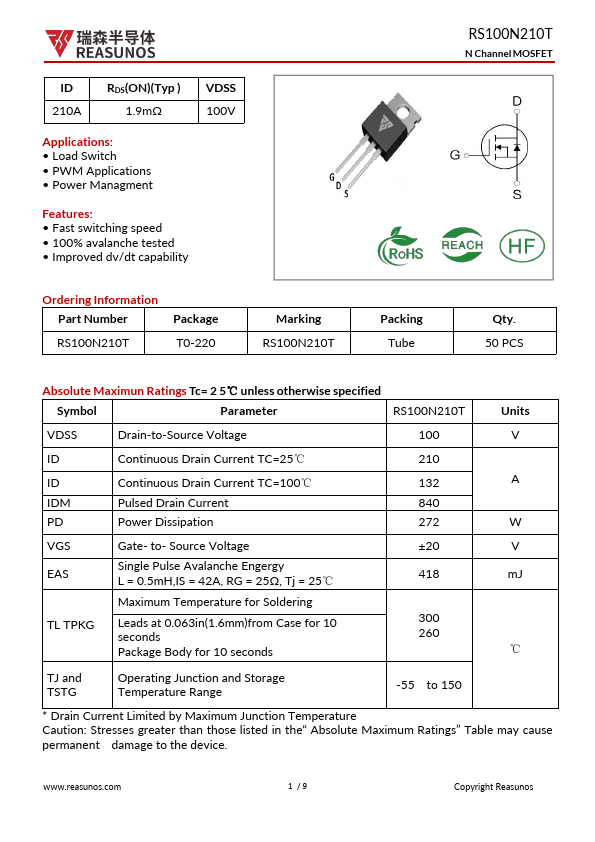

Preview of RS100N210T PDF

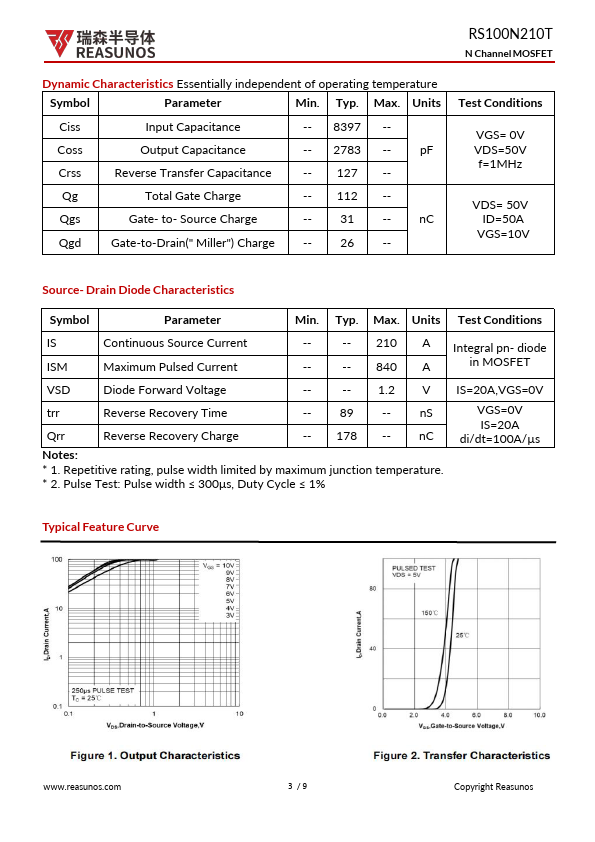

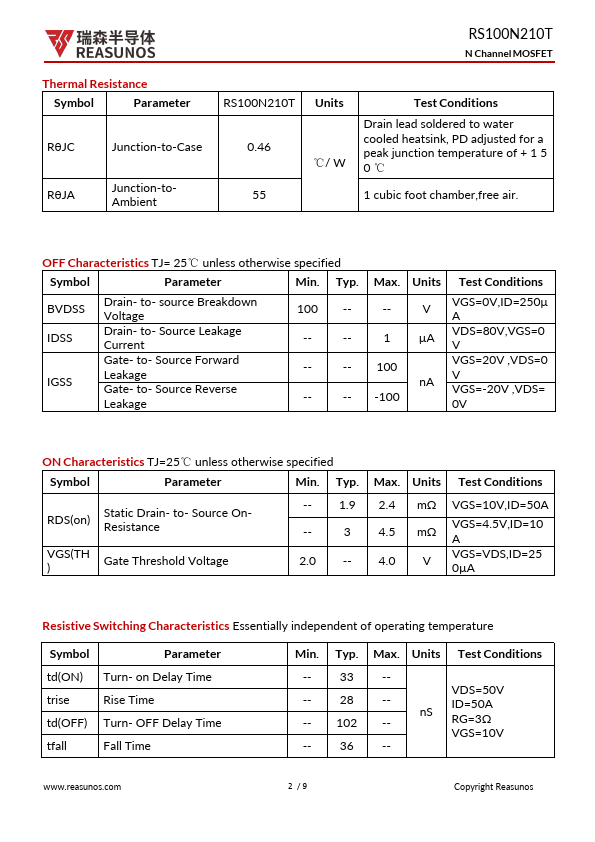

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS100N210T
Manufacturer
Reasunos
File Size
806.88 KB
Datasheet
RS100N210T-Reasunos.pdf
Description
N-Channel MOSFET

Features

* Fast switching speed
* 100% avalanche tested
* Improved dv/dt capability Ordering Information Part Number Package RS100N210T T0-220 Marking RS100N210T RS100N210T N Channel MOSFET Packing Tube Qty. 50 PCS Absolute Maximun Ratings Tc= 2 5℃ unless otherwise specifie

Applications

* Load Switch
* PWM Applications
